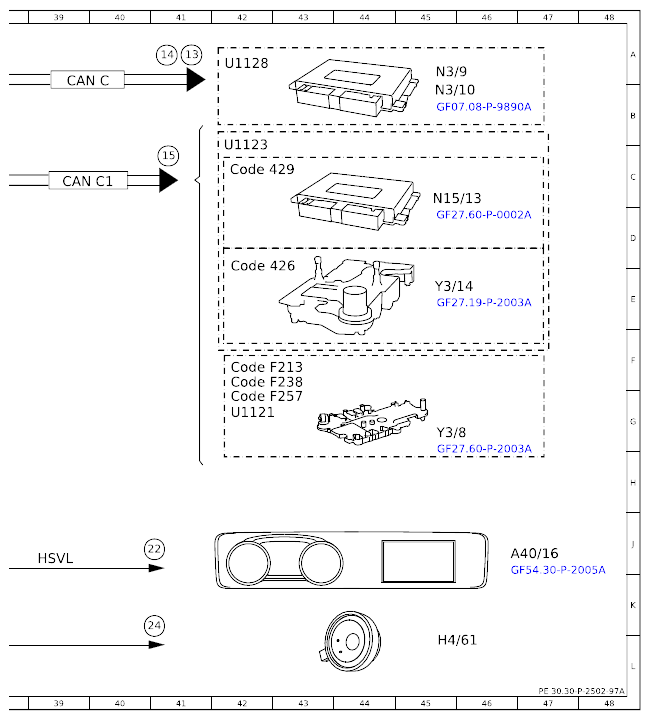

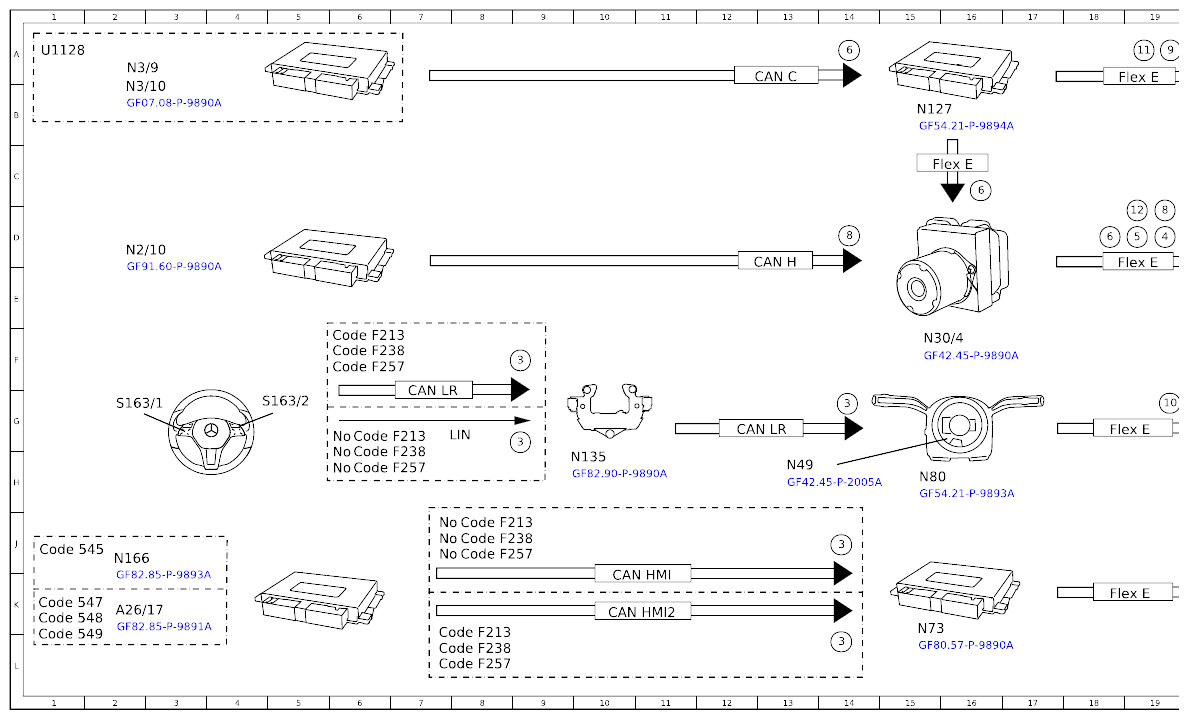

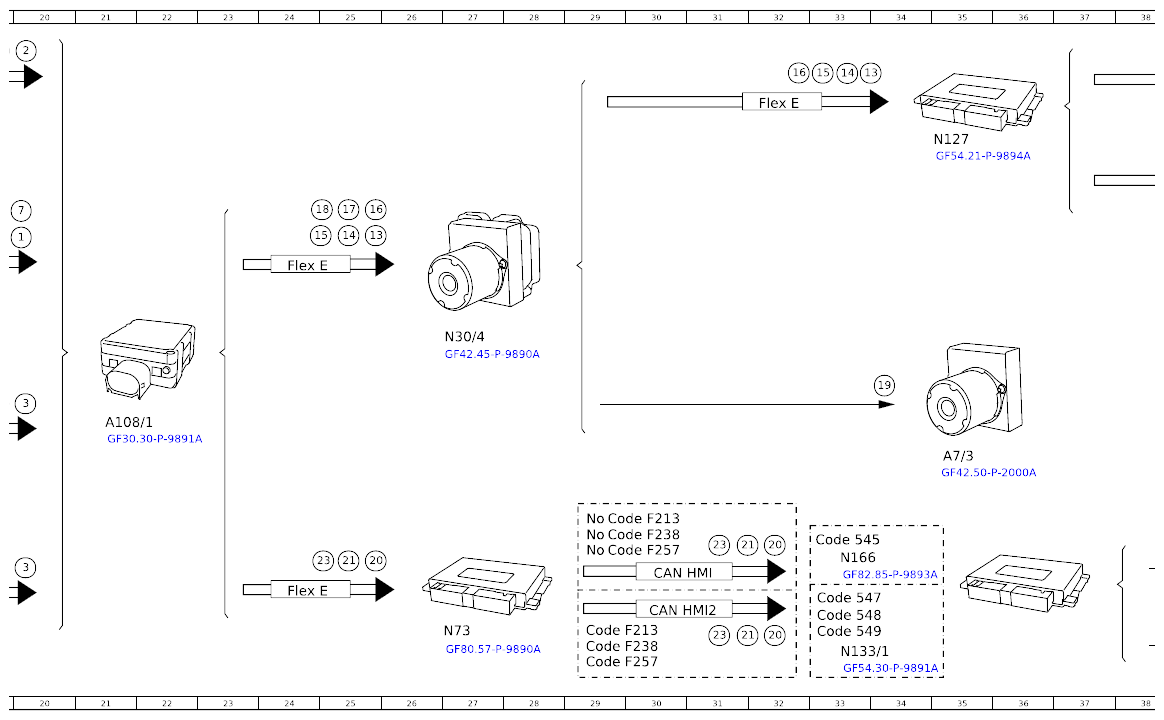

Regulate Distance, Function Schematic - PE30.30-P-2502-97A
Model 118, 167, 177, 243, 247, 293 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 213, 238, 257, 290 as of model year 2021 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Parking brake, status | 20D |
| 10 | Steering wheel angle, signal | 19G |
| 11 | Accelerator pedal position, signal | 19A |
| 12 | Brake pedal position, signal | 19D |
| 13 | Engine torque, reduce request | 25D |
| 13 | Engine torque, reduce request | 34A |
| 13 | Engine torque, reduce request | 41A |
| 14 | Engine torque, increase request | 25D |
| 14 | Engine torque, increase request | 34A |
| 14 | Engine torque, increase request | 41A |
| 15 | Engage targeted gear, request | 24D |
| 15 | Engage targeted gear, request | 33A |
| 15 | Engage targeted gear, request | 40A |
| 16 | Regenerative braking torque, request | 26D |
| 16 | Regenerative braking torque, request | 32A |
| 17 | Braking torque increase, request | 25D |
| 18 | Braking torque reduction, request | 25D |
| 19 | Traction system hydraulic unit, actuation | 34E |
| 2 | Transmission position, signal | 20A |
| 20 | Instrument cluster message, request | 25J |
| 20 | Instrument cluster message, request | 32J |
| 20 | Instrument cluster message, request | 32L |
| 21 | Warning message issue, request | 25J |
| 21 | Warning message issue, request | 31J |
| 21 | Warning message issue, request | 32K |
| 22 | Image data, signal | 41J |
| 23 | Warning tone, request | 24J |
| 23 | Warning tone, request | 31J |
| 23 | Warning tone, request | 31L |
| 24 | Speaker, actuation | 41K |
| 3 | Operation, signal | 9F |
| 3 | Operation, signal | 9G |
| 3 | Operation, signal | 14G |
| 3 | Operation, signal | 14J |
| 3 | Operation, signal | 14L |
| 3 | Operation, signal | 20G |
| 3 | Operation, signal | 20K |
| 4 | Wheel speed, signal | 19D |
| 5 | ESP®, status | 19D |
| 6 | Available torque, signal | 18D |
| 6 | Available torque, signal | 14A |
| 6 | Available torque, signal | 18D |
| 7 | Braking torque, signal | 19D |
| 8 | Speed, turn rate and lateral acceleration, signal | 19D |
| 8 | Speed, turn rate and lateral acceleration, signal | 14D |
| 9 | Transmission mode, signal | 19A |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 21G |
| A26/17 | Head unit | 2K |
| A40/16 | Head unit/instrument cluster display cluster | 47J |
| A7/3 | Traction system hydraulic unit | 35H |
| CAN C | Engine CAN | 13A |
| CAN C | Engine CAN | 39B |
| CAN C1 | Drive train CAN | 39C |
| CAN H | Vehicle dynamics CAN | 13D |
| CAN HMI | User interface CAN | 10K |
| CAN HMI | User interface CAN | 30K |
| CAN HMI2 | User interface CAN 2 | 10K |
| CAN HMI2 | User interface CAN 2 | 30K |
| CAN LR | Steering wheel CAN | 12G |
| CAN LR | Steering wheel CAN | 7G |
| Code 426 | 8G-DCT | 42E |
| Code 429 | 7G-DCT | 42C |
| Code 545 | Connect 5 (NTG6) | 1J |
| Code 545 | Connect 5 (NTG6) | 33J |
| Code 547 | Connect 20 Entry (NTG6) | 1K |
| Code 547 | Connect 20 Entry (NTG6) | 33K |
| Code 548 | Connect 20 MID (NTG6) | 1K |
| Code 548 | Connect 20 MID (NTG6) | 33K |
| Code 549 | Connect 20 HIGH (NTG6) | 1L |
| Code 549 | Connect 20 HIGH (NTG6) | 33L |
| Code F213 | Model series 213 | 6F |
| Code F213 | Model series 213 | 6G |
| Code F213 | Model series 213 | 42F |
| Code F213 | Model series 213 | 8J |
| Code F213 | Model series 213 | 7L |
| Code F213 | Model series 213 | 29J |
| Code F213 | Model series 213 | 29K |
| Code F238 | Model series 238 | 6F |
| Code F238 | Model series 238 | 6H |
| Code F238 | Model series 238 | 42F |
| Code F238 | Model series 238 | 8J |
| Code F238 | Model series 238 | 7L |
| Code F238 | Model series 238 | 29J |
| Code F238 | Model series 238 | 29L |
| Code F257 | MODEL SERIES 257 | 6F |
| Code F257 | MODEL SERIES 257 | 6H |
| Code F257 | MODEL SERIES 257 | 42G |
| Code F257 | MODEL SERIES 257 | 8J |
| Code F257 | MODEL SERIES 257 | 7L |
| Code F257 | MODEL SERIES 257 | 29J |
| Code F257 | MODEL SERIES 257 | 29L |
| Flex E | Chassis FlexRay | 19A |
| Flex E | Chassis FlexRay | 18G |
| Flex E | Chassis FlexRay | 24K |
| Flex E | Chassis FlexRay | 19D |
| Flex E | Chassis FlexRay | 18K |
| Flex E | Chassis FlexRay | 24E |
| Flex E | Chassis FlexRay | 16C |
| Flex E | Chassis FlexRay | 32B |
| H4/61 | Instrument cluster speaker | 45L |
| HSVL | High-speed video link | 39J |
| LIN | Local Interconnect Network | 8G |
| N127 | Drivetrain control unit | 15B |
| N127 | Drivetrain control unit | 35B |
| N133/1 | Instrument cluster control unit | 33L |
| N135 | Steering wheel electronics | 10H |
| N15/13 | Double clutch transmission control unit | 45C |
| N166 | Head unit/instrument cluster control unit | 2J |
| N166 | Head unit/instrument cluster control unit | 33J |
| N2/10 | Supplemental restraint system control unit | 2D |
| N3/10 | ME-SFI [ME] control unit | 45B |
| N3/10 | ME-SFI [ME] control unit | 2B |
| N3/9 | CDI control unit | 45A |
| N3/9 | CDI control unit | 2A |
| N30/4 | Electronic Stability Program control unit | 15F |
| N30/4 | Electronic Stability Program control unit | 27F |
| N49 | Steering wheel angle sensor | 13H |
| N73 | Electronic ignition switch control unit | 15K |
| N73 | Electronic ignition switch control unit | 27K |
| N80 | Steering column module control unit | 15H |
| S163/1 | Instrument cluster multifunction steering wheel button group | 2G |
| S163/2 | Head unit multifunction steering wheel button group | 5G |
| U1121 | Valid for model 167 | 42G |
| U1123 | Valid for model 118, 177, 247 | 42C |
| U1128 | Valid for combustion engine | 42A |
| U1128 | Valid for combustion engine | 1A |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 45E |
| Y3/8 | Fully integrated transmission control controller unit | 45G |
