Remove/Install Alternator - AR15.40-P-5032MFC

Engine 260 in model 118, 177, 247

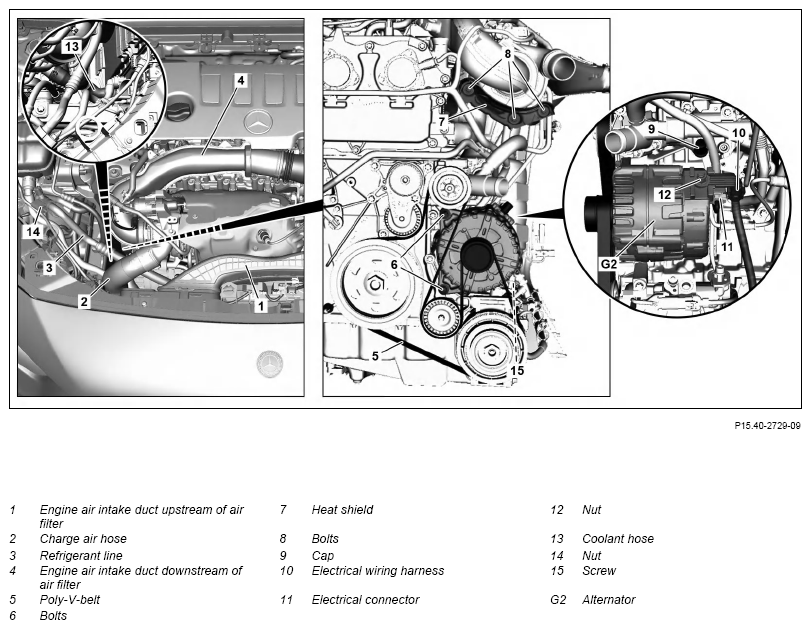

Fig 1: Alternator Components Location - Engine 260 In Model 247 (Shown On Model 177 Without Code M016)

Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
	Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0006-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Remove/install
1	Disconnect ground line from the starter battery (G1).		AR54.10-P-0003MFA
2	Discharge air conditioning system.		AR83.30-P-1760MFA
3	Remove engine air intake duct upstream of air filter (1).
4	Remove engine air intake duct downstream of air filter (4).		AR09.10-P-8130MFC
5	Remove right charge air hose (2).	Engine 260 in model 118, 177, 247 except code M016 (Uprated engine)
		Open and close coupling	AR09.41-P-1311-01AL
6	Remove fan unit.		AR20.40-P-5050MFD
7	Insert cooler protective plate.
			WF58.50-P-0110-01A
8	Remove screws (8) and remove side heat shield (7) at exhaust gas turbocharger.	Bolt, heat shield to exhaust gas turbocharger	*BA09.40-P-1009-02G
9	Unscrew nut (14), remove refrigerant line (3) and seal exposed openings with suitable stop plugs.	Nut, refrigerant line connecting point	*BA83.30-P-1002-01T
		Record plug	Fig 3
10	Drain off coolant.		AR20.00-P-1142MFC
11	Remove the poly-V-belt (5).		AR13.22-P-1202MFC
12	Remove coolant hose (13) at water pump and cooler, place to one side and seal.	Hose clamp pliers	Fig 2
13	Remove screw (15) at refrigerant compressor.	Bolt, refrigerant line to refrigerant compressor	*BA83.55-P-1002-02F
14	Remove refrigerant line (3) and seal exposed openings with suitable stop plugs.	Replace seals. Wet seals with compressor oil.
		Record plug	Fig 3
15	Release and disconnect electrical connector (11) at alternator (G2).
16	Remove cover (9) from circuit 30 at alternator (G2).
17	Unscrew nut (12) from circuit 30 at alternator (G2) and place electrical wiring harness (10) to one side.	Nut, circuit B+ to alternator	*BA15.40-P-1002-01W
18	Remove screws (6) at alternator (G2).	Tighten alternator screws/bolts	AR15.40-P-0002-01MFA
		Observe tightening procedure.
		Screw, alternator to timing case/major assembly carrier	*BA15.40-P-1001-01W
19	Carefully remove alternator (G2) upwards.
20	Install in the reverse order.

Fig 2: Identifying Hose Clamp Pliers (454 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
