Test Alternator Charging Current - AR15.40-P-5011MFD

Engine 260 in model 118, 177, 247

Engine 282 in model 118, 177, 247

except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))

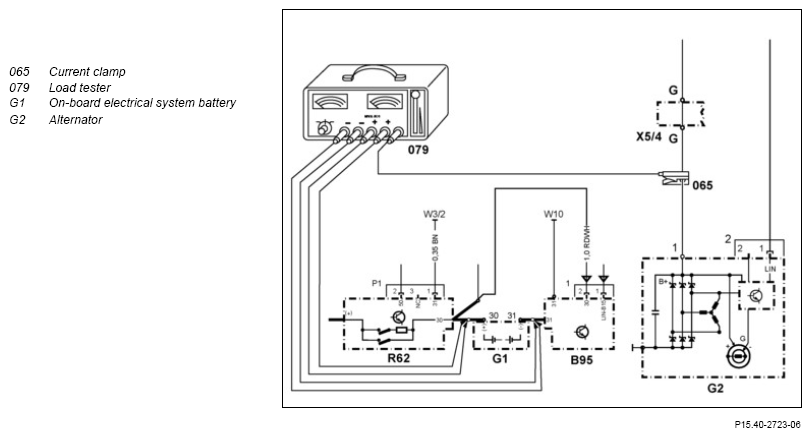

Connection scheme

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

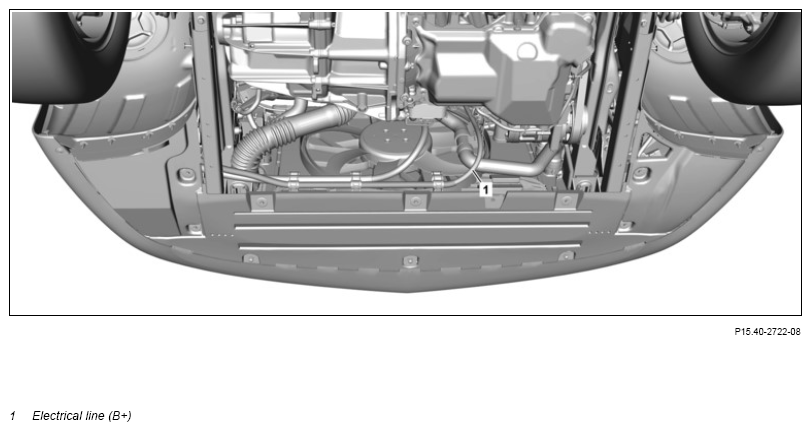

Shown on model 177 with engine 282 except code ME08 (Hybrid drive 75-84 KW VARIANT (INCLUDING plug-in))

	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove bottom engine compartment lining.	Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)	AR61.20-P-1105MFR
		Engine 260 in model 118, 177, 247 except code M016 (Uprated engine) Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))	AR61.20-P-1105MFA
	Check
2	Check poly-V-belt for wear and replace if necessary.
			AP13.22-P-1352EW
3	Disconnect ground line of on-board electrical system battery (G1).		AR54.10-P-0003MFA
4	Check electric lines on the on-board electrical system battery (G1) and starter battery ground point (W10) for tight seating and fault-free condition.	If there are problems: ↓ Create tight seating of the electric lines on the on-board electrical system battery (G1) and starter battery ground point (W10).
		Ground point (starter battery)	*BA00.19-P-1015-02E
		Nut, ground line (battery sensor) to body	*BA54.10-P-1004-01D
		Nut, ground line (battery sensor) to battery terminal	*BA54.10-P-1005-01D
		Nut, starter wiring harness to current limiter	*BA54.10-P-1006-01D
		Nut, current limiter to battery terminal	*BA54.10-P-1007-01D
5	Check electric lines on the alternator (G2), on the starter and alternator line connector (X5/4x1), and on the front left wheel arch ground point (W3/2) for tight seating and fault-free condition.	If there are problems:
		↓ Create tight seating of the electric lines on the alternator (G2), on the starter and alternator line connector (X5/4x1), and on the front left wheel arch ground point (W3/2).
		Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Nut, circuit B+ to alternator	*BA15.40-P-1003-01V
		Engine 260 in model 118, 177, 247Nut, circuit B+ to alternator	*BA15.40-P-1002-01W
		Left front wheel arch ground point	*BA00.19-P-1007-02E
6	Check that ground strap between transmission mount and body is seated tightly and is in perfect condition.	If there are problems: ↓ Create tight seating of the ground strap between the transmission mount and body.
		Nut, ground strap to transmission mount	*BA00.19-P-1040-02E
7	Attach ground line of the on-board electrical system battery (G1).		AR54.10-P-0003MFA
8	Connect load tester (079) according to connection scheme.
	000 588 03 19 00 Load tester		WS15.00-P-0027B
9	Connect current clamp (065) to the electric line (B+) (1).
	000 588 03 19 00 Load tester		WS15.00-P-0027B
10	Start engine.
11	Load on-board electrical system battery (G1) with the load tester (079) and check charging current at increased engine speed.	Change the load resistance until the maximum charging current is reached. In doing so the charging voltage must not fall below 12.7 V.
		Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Power category 150A Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Power category 165A Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Power category 180ACharging current for alternator	*BE15.40-P-1001-01M
		Engine 260 in model 118, 177, 247Charging current for alternator	*BE15.40-P-1001-01L
12	Check alternator diodes (G2).		AR15.40-P-9301-02MFD
		If there are problems: ↓ Replace alternator (G2).
		Engine 260 in model 118, 177, 247	AR15.40-P-5032MFC
		Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))	AR15.40-P-5032MFD
13	Switch off engine.
14	Disconnect load tester (079) with current clamp (065).
	000 588 03 19 00 Load tester		WS15.00-P-0027B
	Install
15	Install lower engine compartment lining.	Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)	AR61.20-P-1105MFR
		Engine 260 in model 118, 177, 247 except code M016 (Uprated engine) Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))	AR61.20-P-1105MFA
