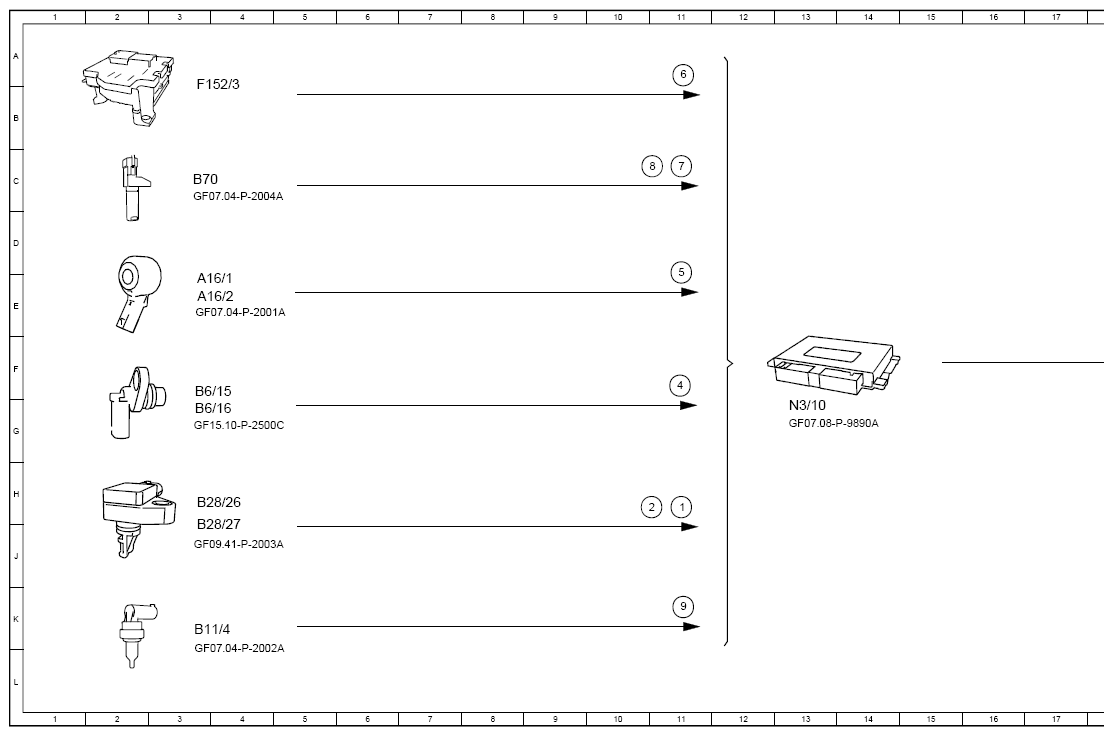

Function Schematic For Ignition System - PE15.10-P-2500-97B
Engine 260 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Charge air temperature sensor, signal | 11H |
| 2 | Engine load, signal | 10H |
| 3 | Ignition coils, actuation | 18E |
| 4 | Camshaft Hall sensor, signal | 11F |
| 5 | Knock sensor, signal | 11D |
| 6 | Circuit 87, status | 11A |
| 7 | Engine speed, signal | 11C |
| 8 | Crankshaft Hall sensor, signal | 10C |
| 9 | Coolant temperature sensor, signal | 11K |
| A1/1 | Knock sensor 1 | 3E |
| A1/2 | Knock sensor 2 | 3E |
| B1/4 | Coolant temperature sensor | 3K |
| B2/26 | Pressure and temperature sensor upstream of throttle valve | 3H |
| B2/27 | Pressure and temperature sensor downstream of throttle valve | 3J |
| B/15 | Intake camshaft Hall sensor | 3F |
| B/16 | Exhaust camshaft Hall sensor | 3G |
| B70 | Crankshaft Hall sensor | 3C |
| F15/3 | Engine compartment fuse and relay module | 3B |
| N/10 | ME-SFI [ME] control unit | 13G |
| T/1 | Cylinder 1 ignition coil | 21F |
| T/2 | Cylinder 2 ignition coil | 21F |
| T/3 | Cylinder 3 ignition coil | 21F |
| T/4 | Cylinder 4 ignition coil | 21F |
