Remove/Install Fuel Differential Pressure Sensor - AR07.04-P-0025MFC
Engine 260 in model 118, 177, 247
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove bottom engine compartment lining. | Engine 260 in model 118, 177, 247 with code M016 (Uprated engine) | AR61.20-P-1105MFR |
| Engine 260 in model 118, 177, 247 except code M016 (Uprated engine) |
AR61.20-P-1105MFA | ||
| 2 | Release and disconnect the electrical connector (2). | ||
| 3 | Remove nut (3). | ||
| 4 | Remove nut (1). | ||
| 5 | Open clamps (5), remove molded hoses (4) from pressure lines and seal openings with suitable stop plugs. | Only open clamps (5) at pressure lines. Due to the opening of the clamps at the gasoline particulate filter differential pressure sensor (B163/3), a hairline crack and thus malfunctions occur at the gasoline particulate filter differential pressure sensor (B163/3). |
|

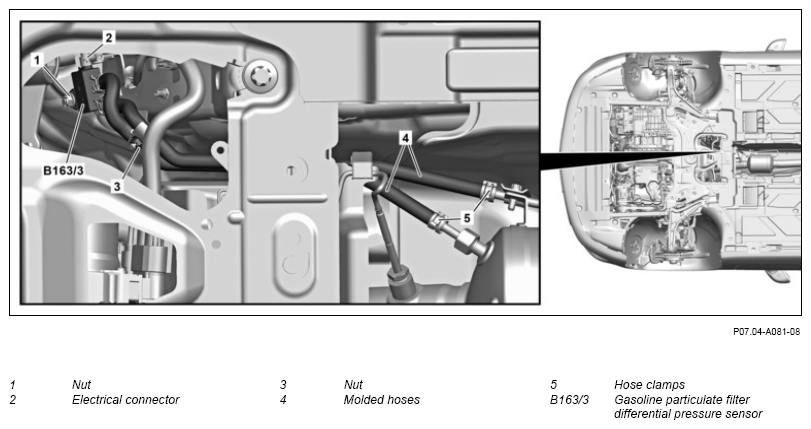

| Fig 3 | |||
| Fig 2 | |||
| 6 | Remove gasoline particulate filter differential pressure sensor (B163/3) from bracket and remove with connected molded hoses (4). | ||
| 7 | Install in the reverse order. | ||
| 8 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run; check engine for proper operation and check exhaust system for leak tightness. | ||
| 10 | Install lower engine compartment lining. | Engine 260 in model 118, 177, 247 with code M016 (Uprated engine) | AR61.20-P-1105MFR |
| Engine 260 in model 118, 177, 247 except code M016 (Uprated engine) | AR61.20-P-1105MFA |
