Remove/Install Position Sensor Of Intake Camshaft - AR07.04-P-0056MFC

Engine 260 in model 118, 177, 247

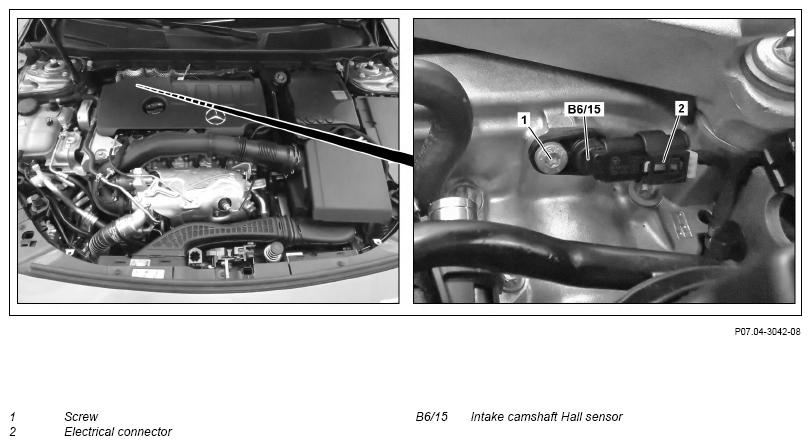

Fig 1: Position/Hall Sensor Of Intake Camshaft Components Location - Engine 260 In Model 247 (Shown Without Code M016)

Courtesy of MERCEDES-BENZ USA

Shown on engine without code M016 (performance-enhanced engine)

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove upper engine cover.
		Only install the top engine cover after having completed the function check.	AP01.10-P-2405-01C
2	Release and disconnect electrical connector (2) at intake camshaft Hall sensor (B6/15).
3	Remove screw/bolt (1).	Screw/bolt, camshaft position sensor to cylinder head cover	*BA15.10-P-1002-03I
4	Remove intake camshaft Hall sensor (B6/15) and seal opening with suitable stop plug.	Record plug	Fig 2
5	Clean sealing surfaces at engine and intake camshaft Hall sensor (B6/15).	Only clean sealing surface at intake camshaft Hall sensor (B6/15) if removed intake camshaft Hall sensor (B6/15) will be reinstalled.
		Cleaner	*BR00.45-Z-1025-04A
6	Check seal at intake camshaft Hall sensor (B6/15) for damage.	If there are problems, ↓ Replace intake camshaft Hall sensor (B6/15).
7	Install in the reverse order.
	Check
8	Read out and delete fault memory.
			AD00.00-P-2000-06MFA
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Perform engine test run. While doing so, check engine for proper operation and leak tightness.
10	Install upper engine cover.
			AP01.10-P-2405-01C

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
