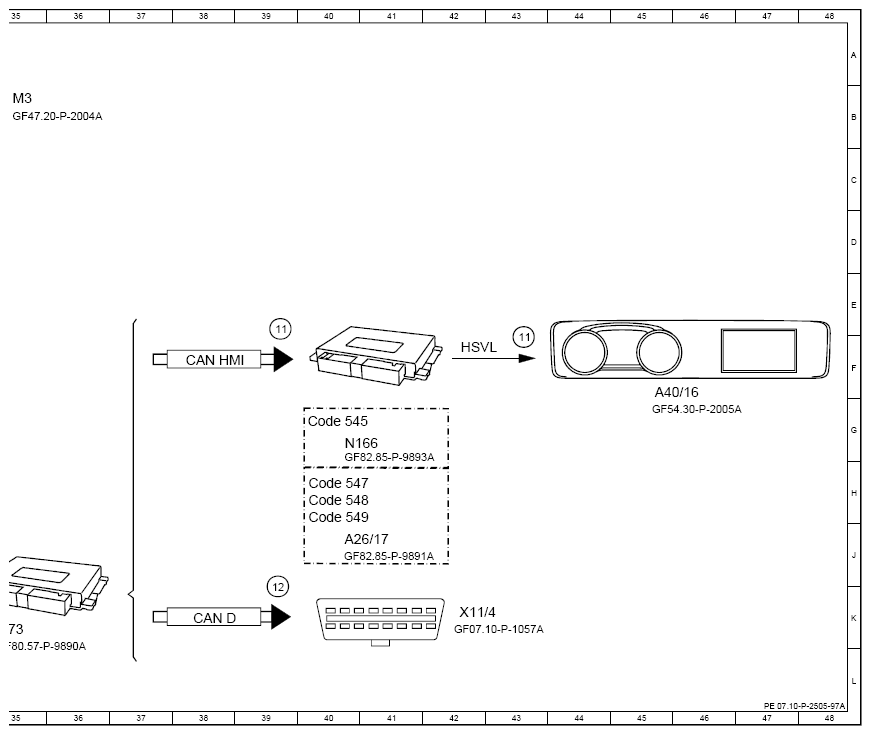

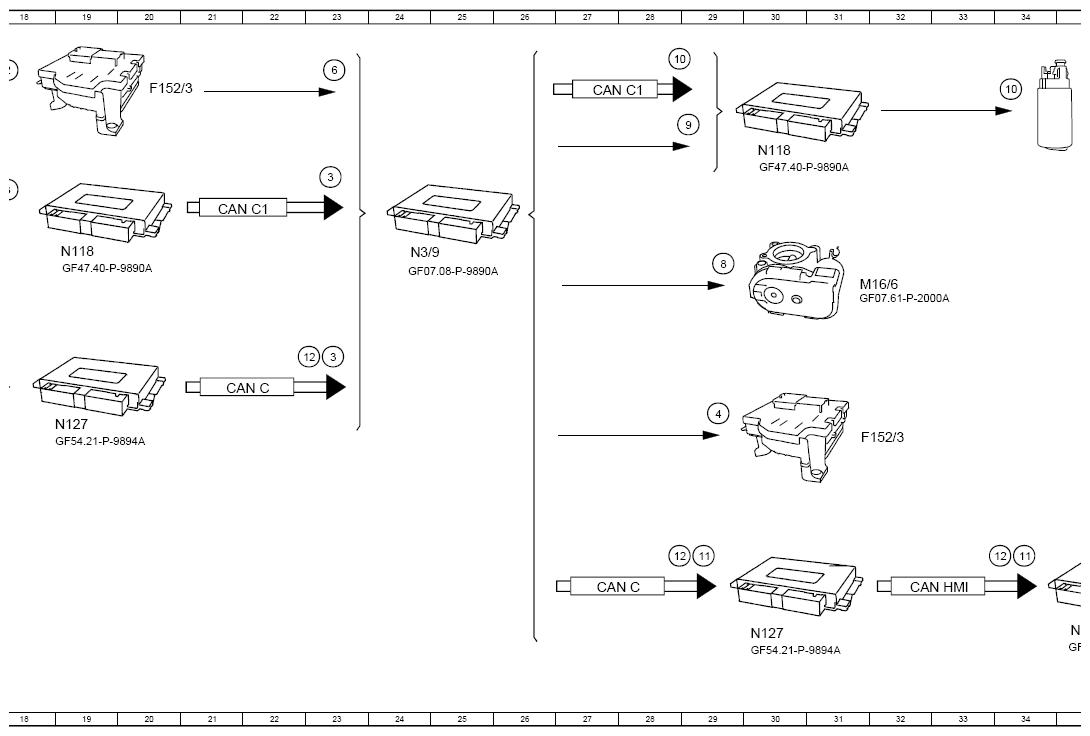

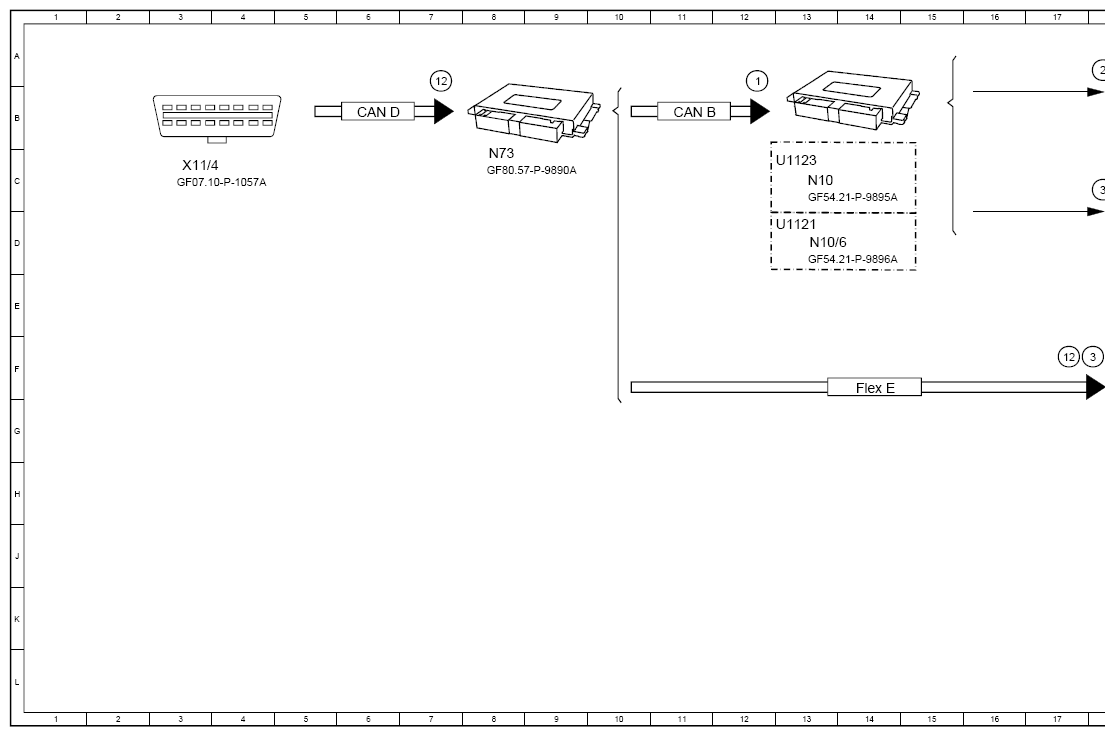

Function Schematic For Ignition On - PE07.10-P-2505-97A
Engine 260, 282, 608 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, request ON | 12A |
| 10 | Correction programming, communication | 28A |
| 11 | Engine diagnosis indicator lamp, actuation | 29J |
| 11 | Engine diagnosis indicator lamp, actuation | 34J |
| 11 | Engine diagnosis indicator lamp, actuation | 39E |
| 11 | Engine diagnosis indicator lamp, actuation | 43F |
| 12 | Correction programming, communication | 7A |
| 12 | Correction programming, communication | 28J |
| 12 | Correction programming, communication | 34J |
| 12 | Correction programming, communication | 39K |
| 12 | Correction programming, communication | 23F |
| 12 | Correction programming, communication | 18F |
| 2 | Circuit 15 relay, actuation | 18A |
| 3 | Circuit 15, status ON | 23F |
| 3 | Circuit 15, status ON | 18F |
| 3 | Circuit 15, status ON | 23C |
| 3 | Circuit 15, status ON | 18C |
| 4 | Combustion engine circuit 87 relay, actuation | 29G |
| 6 | Circuit 87, status | 23A |
| 8 | Actuator motor, throttle valve actuator, actuation | 29D |
| 9 | Fuel pump, request ON | 29B |
| A2/17 | Head unit | 40J |
| A4/16 | Head unit/instrument cluster display cluster | 45F |
| CAN B | Interior CAN | 11B |
| CAN C | Engine CAN | 21F |
| CAN C | Engine CAN | 27K |
| CAN C1 | Drive train CAN | 21D |
| CAN C1 | Drive train CAN | 27B |
| CAN D | Diagnostic CAN | 6B |
| CAN D | Diagnostic CAN | 38K |
| CAN HMI | User interface CAN | 32K |
| CAN HMI | User interface CAN | 38F |
| Code 545 | Connect 5 (NTG6) | 40G |
| Code 547 | Connect 20 Entry (NTG6) | 40H |
| Code 548 | Connect 20 MID (NTG6) | 40H |
| Code 549 | Connect 20 HIGH (NTG6) | 40H |
| F15/3 | Engine compartment fuse and relay module | 20B |
| F15/3 | Engine compartment fuse and relay module | 32G |
| Flex E | Chassis FlexRay | 14F |
| HSVL | High-speed video link | 42F |
| M1/6 | Throttle valve actuator | 32E |
| M3 | Fuel pump (FP) | 35B |
| N10 | Central control module | 13C |
| N1/6 | Front central control unit | 13D |
| N118 | Fuel pump control unit | 19D |
| N118 | Fuel pump control unit | 30C |
| N127 | Drivetrain control unit | 19G |
| N127 | Drivetrain control unit | 30K |
| N166 | Head unit/instrument cluster control unit | 40G |
| N/9 | CDI control unit | 24D |
| N73 | Electronic ignition switch control unit | 8C |
| N73 | Electronic ignition switch control unit | 35K |
| U1121 | Valid for model 167 | 13D |
| U1123 | Valid for model 118, 177, 247 | 13C |
| X1/4 | Diagnostic connector | 3C |
| X1/4 | Diagnostic connector | 42K |
