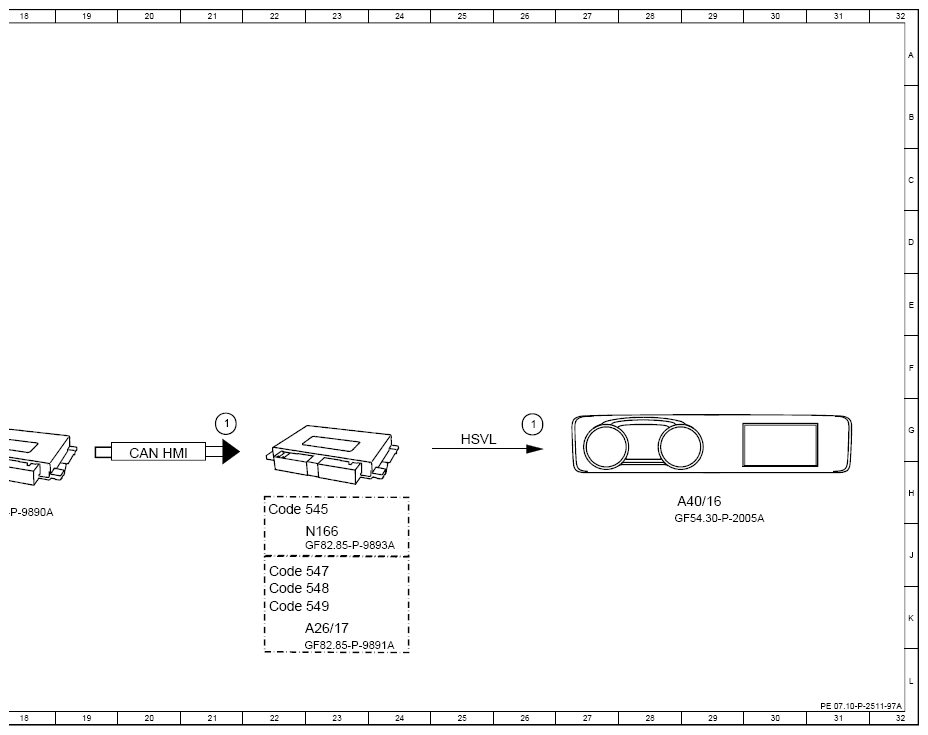

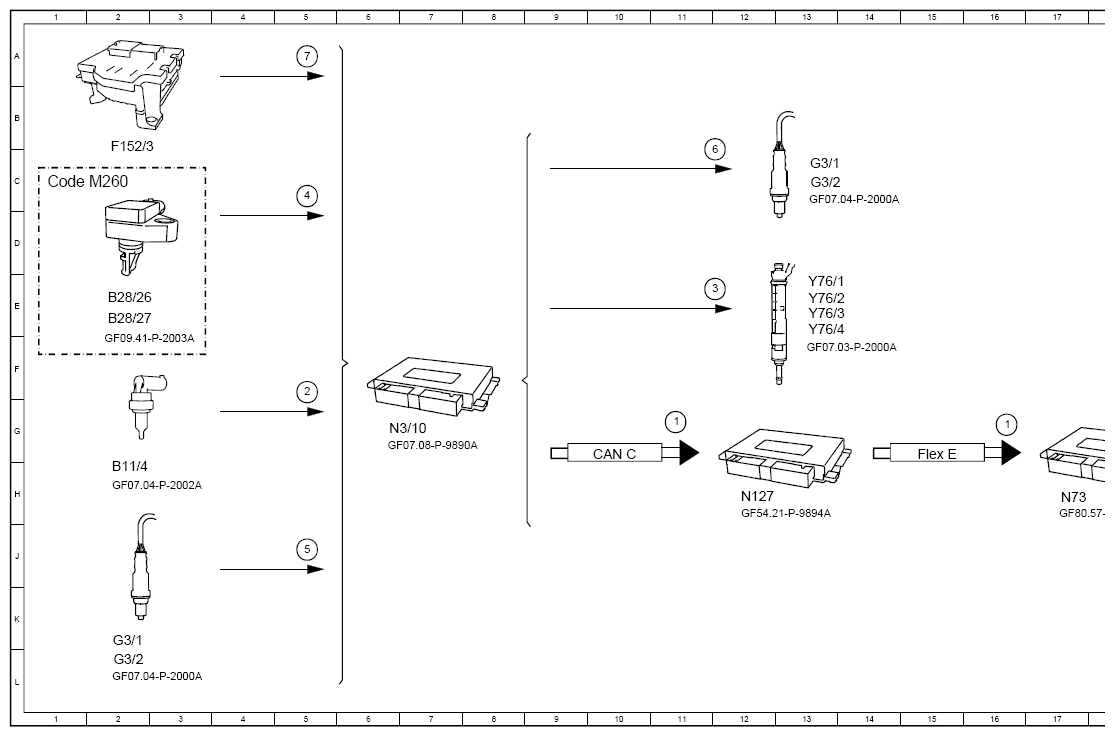

Function Schematic For Lambda Control - PE07.10-P-2511-97A
Engine 260, 282 in model 118, 177, 247 up to model year 2023
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 26G |
| 1 | Engine diagnosis indicator lamp, actuation | 21G |
| 1 | Engine diagnosis indicator lamp, actuation | 16G |
| 1 | Engine diagnosis indicator lamp, actuation | 11G |
| 2 | Coolant temperature sensor, signal | 5F |
| 3 | Fuel injectors, actuation | 12E |
| 4 | Engine load, signal | 5C |
| 5 | Oxygen sensor sensor element, signal | 5J |
| 6 | Oxygen sensor heater, actuation | 12B |
| 7 | Circuit 87, status | 5A |
| A2/17 | Head unit | 23K |
| A4/16 | Head unit/instrument cluster display cluster | 29H |
| B1/4 | Coolant temperature sensor | 2H |
| B2/26 | Pressure and temperature sensor upstream of throttle valve | 2E |
| B2/27 | Pressure and temperature sensor downstream of throttle valve | 2E |
| CAN C | Engine CAN | 10G |
| CAN HMI | User interface CAN | 20G |
| Code 545 | Connect 5 (NTG6) | 22H |
| Code 547 | Connect 20 Entry (NTG6) | 22J |
| Code 548 | Connect 20 MID (NTG6) | 22K |
| Code 549 | Connect 20 HIGH (NTG6) | 22K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 1C |
| F15/3 | Engine compartment fuse and relay module | 2C |
| Flex E | Chassis FlexRay | 15G |
| G/1 | Oxygen sensor downstream of catalytic converter | 13C |
| G/1 | Oxygen sensor downstream of catalytic converter | 2K |
| G/2 | Oxygen sensor upstream of catalytic converter | 13C |
| G/2 | Oxygen sensor upstream of catalytic converter | 2L |
| HSVL | High-speed video link | 25G |
| N127 | Drivetrain control unit | 12H |
| N166 | Head unit/instrument cluster control unit | 23J |
| N/10 | ME-SFI [ME] control unit | 6G |
| N73 | Electronic ignition switch control unit | 17H |
| Y7/1 | Cylinder 1 fuel injector | 13E |
| Y7/2 | Cylinder 2 fuel injector | 13E |
| Y7/3 | Cylinder 3 fuel injector | 13E |
| Y7/4 | Cylinder 4 fuel injector | 13E |
