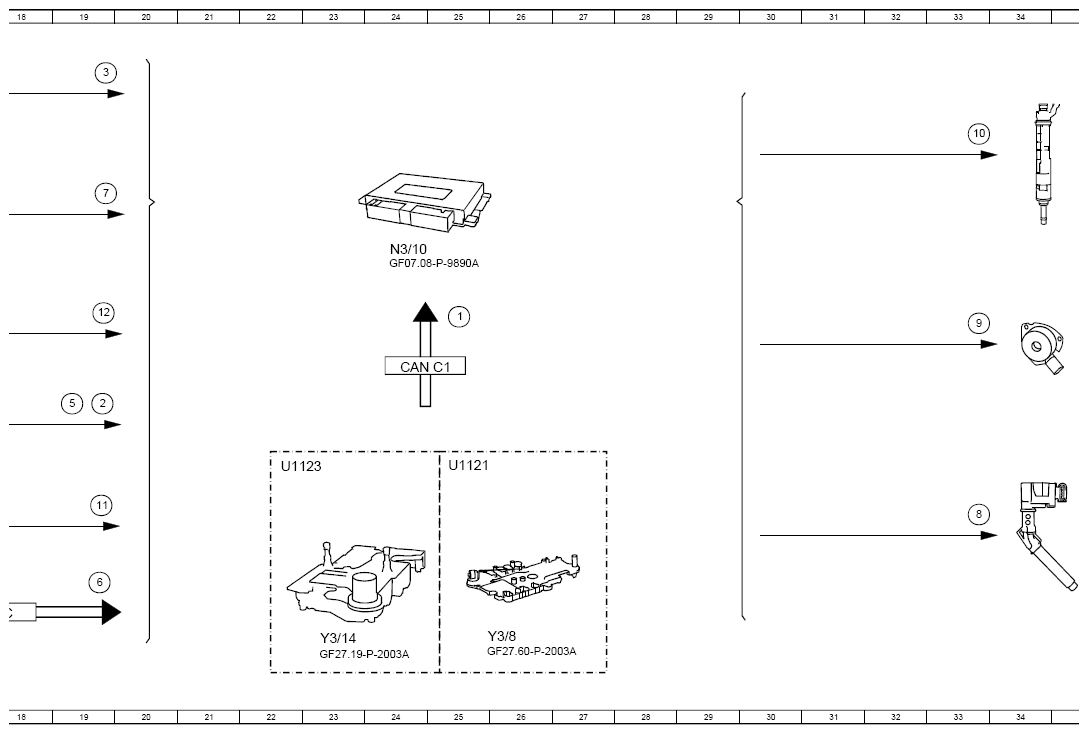

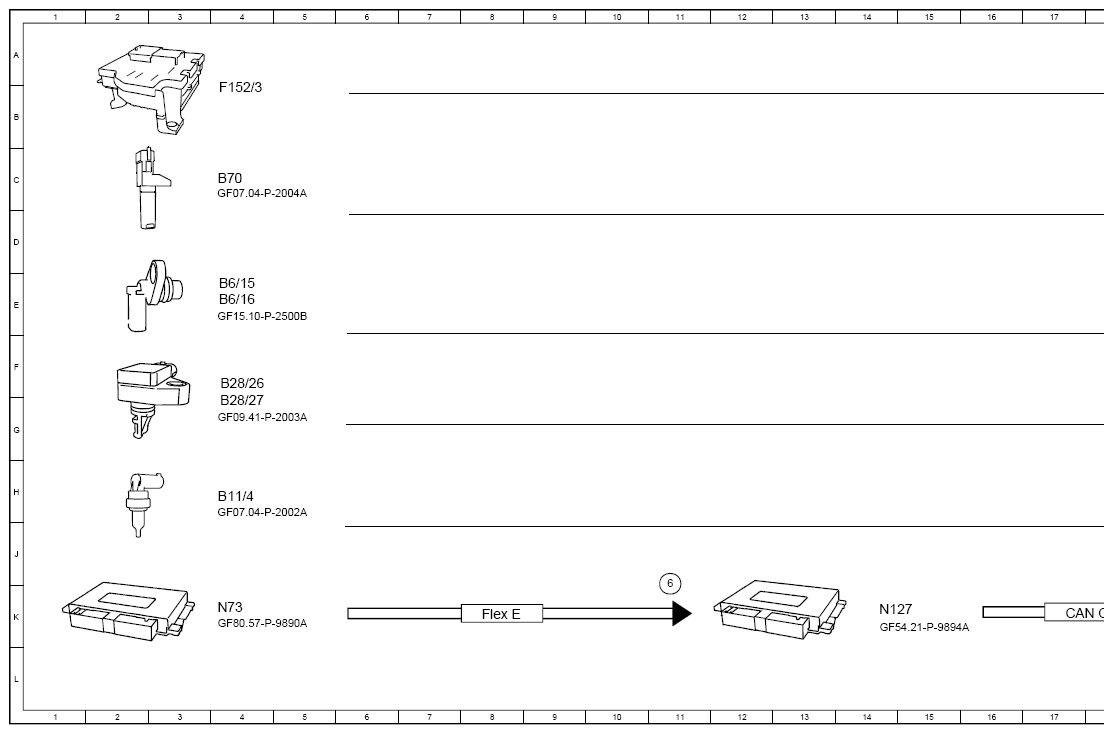

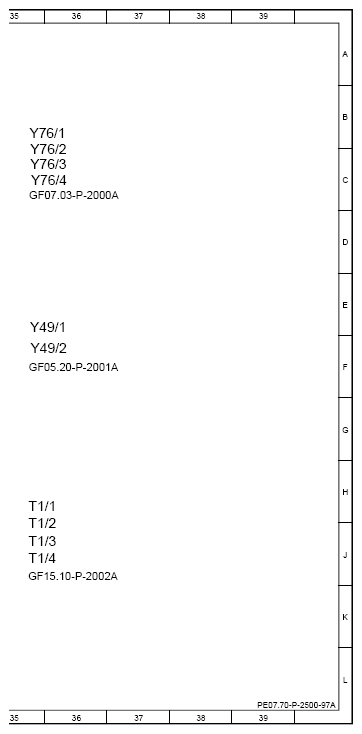

Function Schematic For Start Quantity Control - PE07.70-P-2500-97A
Engine 260 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rear-end door locking unit, status | 25E |
| 10 | Fuel injectors, actuation | 33B |
| 11 | Coolant temperature sensor, signal | 19H |
| 12 | Camshaft Hall sensor, signal | 19E |
| 2 | Engine load, signal | 19G |
| 3 | Circuit 87, status | 19A |
| 5 | Charge air temperature sensor, signal | 19G |
| 6 | Circuit 50, status | 19K |
| 6 | Circuit 50, status | 11K |
| 7 | Engine speed, signal | 19C |
| 8 | Ignition coils, actuation | 33H |
| 9 | Camshaft solenoids, actuation | 33E |
| B1/4 | Coolant temperature sensor | 4H |
| B2/26 | Pressure and temperature sensor upstream of throttle valve | 4F |
| B2/27 | Pressure and temperature sensor downstream of throttle valve | 4G |
| B/15 | Intake camshaft Hall sensor | 4E |
| B/16 | Exhaust camshaft Hall sensor | 4E |
| B70 | Crankshaft Hall sensor | 4C |
| CAN C | Engine CAN | 17K |
| CAN C1 | Drive train CAN | 24F |
| F15/3 | Engine compartment fuse and relay module | 4B |
| Flex E | Chassis FlexRay | 8K |
| N127 | Drivetrain control unit | 14K |
| N/10 | ME-SFI [ME] control unit | 24D |
| N73 | Electronic ignition switch control unit | 4K |
| T/1 | Cylinder 1 ignition coil | 35H |
| T/2 | Cylinder 2 ignition coil | 35J |
| T/3 | Cylinder 3 ignition coil | 35J |
| T/4 | Cylinder 4 ignition coil | 35J |
| U1121 | Valid for model 167 | 25H |
| U1123 | Valid for model 118, 177, 247 | 22H |
| Y/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 23K |
| Y/8 | Fully integrated transmission control controller unit | 26K |
| Y4/1 | Intake camshaft solenoid | 35E |
| Y4/2 | Exhaust camshaft solenoid | 35F |
| Y7/1 | Cylinder 1 fuel injector | 35B |
| Y7/2 | Cylinder 2 fuel injector | 35C |
| Y7/3 | Cylinder 3 fuel injector | 35C |
| Y7/4 | Cylinder 4 fuel injector | 35C |
