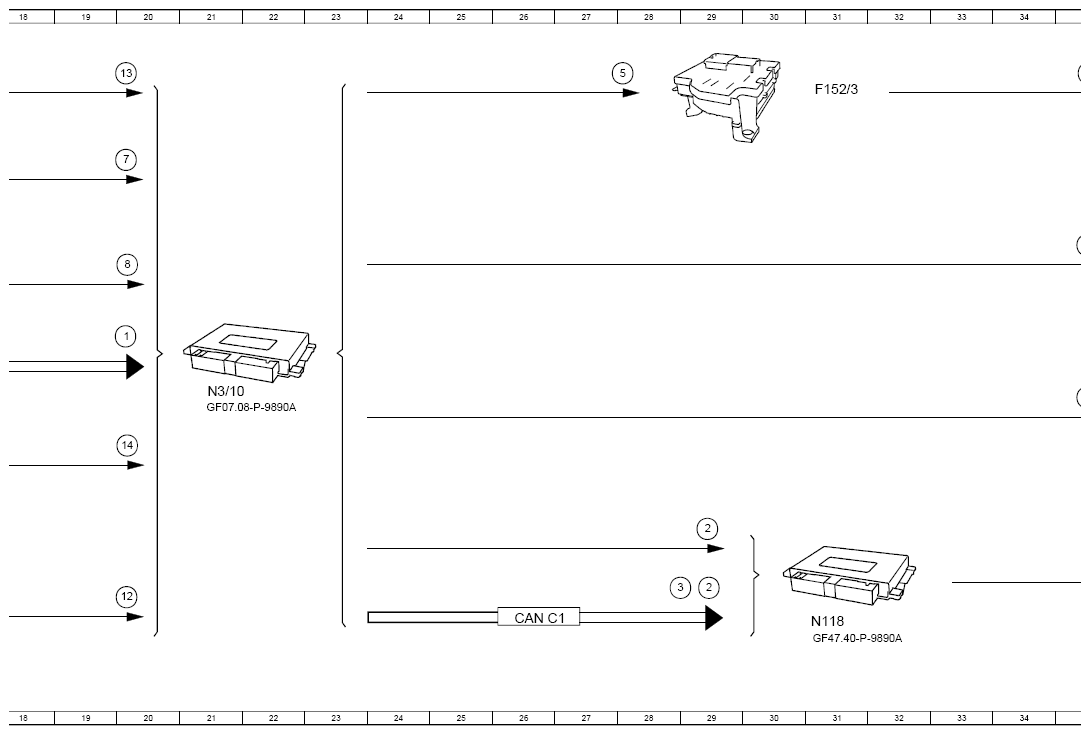

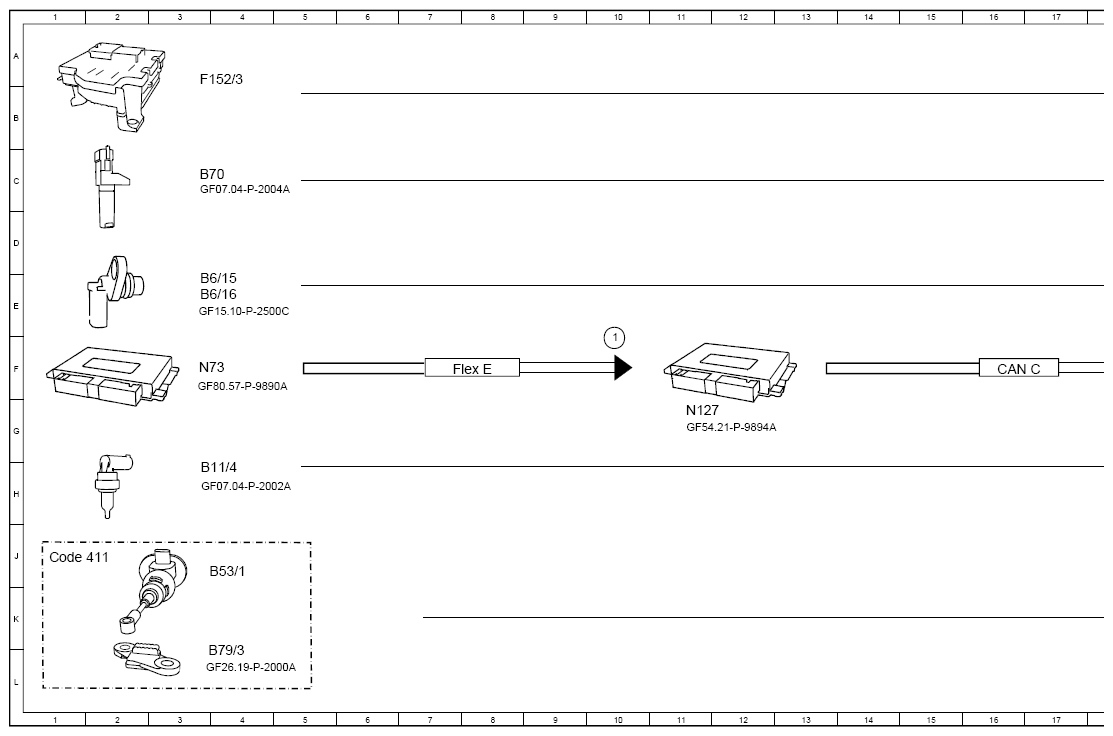

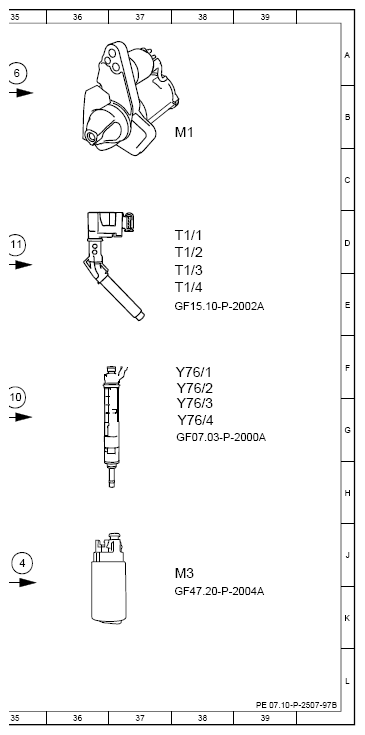

Function Schematic For Starting - PE07.10-P-2507-97B
Engine 260, 282 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 20E |
| 1 | Circuit 50, status | 10E |
| 10 | Fuel injectors, actuation | 35F |
| 11 | Ignition coils, actuation | 35D |
| 12 | Clutch pedal switch, status | 20K |
| 13 | Circuit 87, status | 20A |
| 14 | Coolant temperature sensor, signal | 20G |
| 2 | Fuel pump, request ON | 29K |
| 2 | Fuel pump, request ON | 29J |
| 3 | Fuel pump, specified pressure request | 28K |
| 4 | Fuel pump, actuation | 36J |
| 5 | Starter circuit 50 relay, actuation | 28A |
| 6 | Starter, actuation | 35A |
| 7 | Engine speed, signal | 20B |
| 8 | Camshaft Hall sensor, signal | 20E |
| B1/4 | Coolant temperature sensor | 3H |
| B5/1 | Clutch travel sensor with start enable switch | 4J |
| B/15 | Intake camshaft Hall sensor | 3E |
| B/16 | Exhaust camshaft Hall sensor | 3E |
| B70 | Crankshaft Hall sensor | 3C |
| B7/3 | Manual transmission main shifter shaft position sensor | 4L |
| CAN C | Engine CAN | 16F |
| CAN C1 | Drive train CAN | 26K |
| Code 411 | 6-SPEED MANUAL TRANSMISSION | 1J |
| F15/3 | Engine compartment fuse and relay module | 4A |
| F15/3 | Engine compartment fuse and relay module | 31B |
| Flex E | Chassis FlexRay | 8F |
| M1 | Starter | 38B |
| M3 | Fuel pump (FP) | 38J |
| N118 | Fuel pump control unit | 31K |
| N127 | Drivetrain control unit | 11G |
| N/10 | ME-SFI [ME] control unit | 21F |
| N73 | Electronic ignition switch control unit | 3F |
| T/1 | Cylinder 1 ignition coil | 38D |
| T/2 | Cylinder 2 ignition coil | 38D |
| T/3 | Cylinder 3 ignition coil | 38E |
| T/4 | Cylinder 4 ignition coil | 38E |
| Y7/1 | Cylinder 1 fuel injector | 38F |
| Y7/2 | Cylinder 2 fuel injector | 38F |
| Y76/3 | Cylinder 3 fuel injector | 38G |
| Y7/4 | Cylinder 4 fuel injector | 38G |
