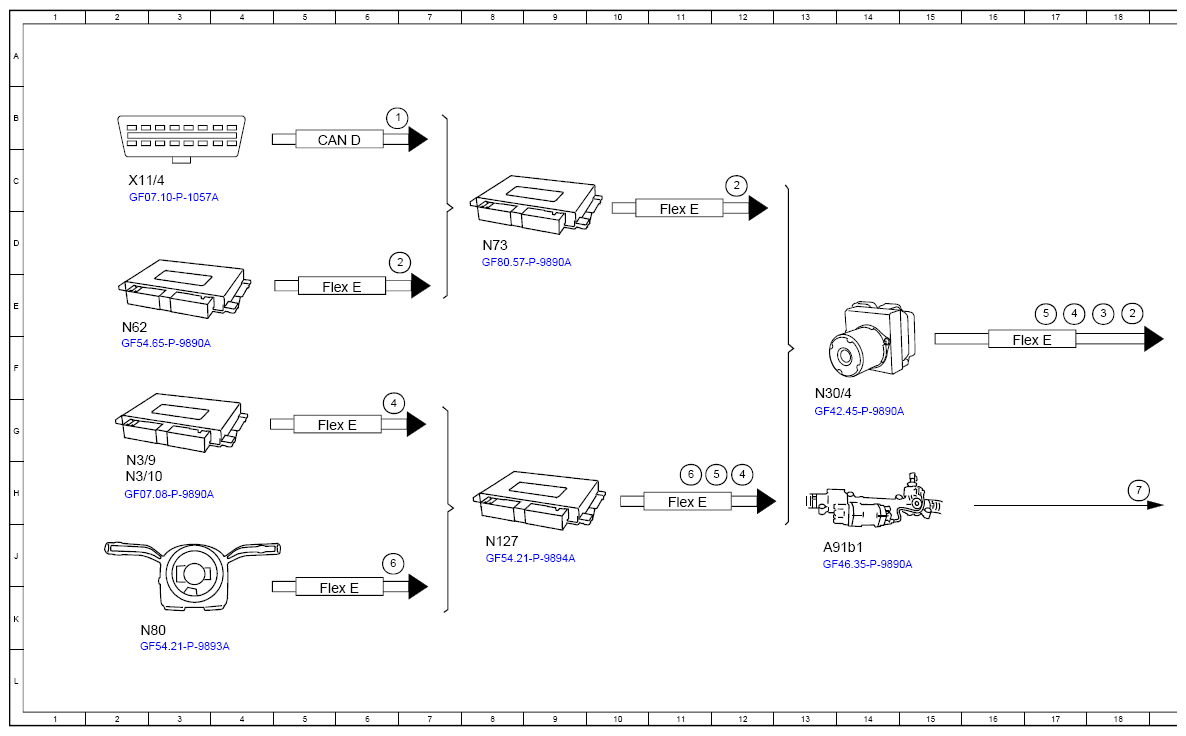

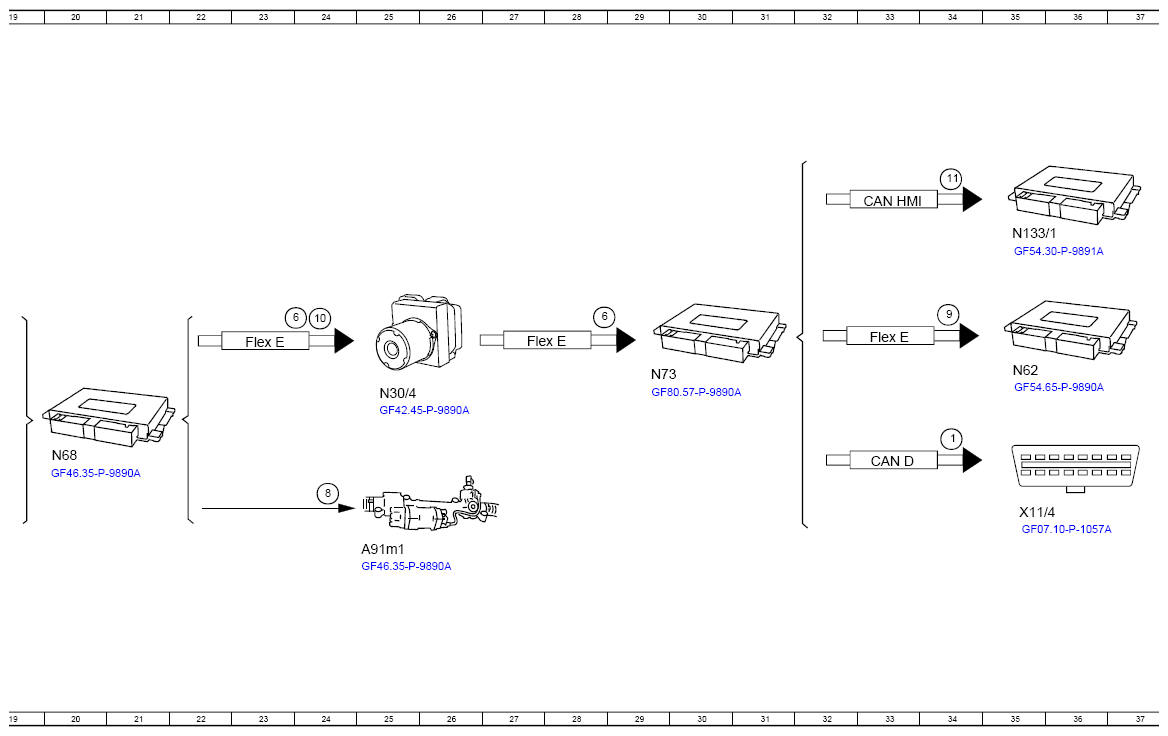

Function Schematic For Electric Power Steering - PE46.35-P-2500-97A
Model 118, 167, 177, 247
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation | Position |
|---|---|---|
| 1 | Steering diagnosis, communication | 6B |
| 1 | Steering diagnosis, communication | 34G |
| 10 | Steering wheel angle, request | 24E |
| 11 | Instrument cluster, message | 34C |
| 11 | Instrument cluster, message | 39C |
| 2 | Parking system control unit, status | 6D |
| 2 | Parking system control unit, status | 12C |
| 2 | Parking system control unit, status | 18E |
| 3 | ESP®, status | 18E |
| 4 | Engine management, communication | 6G |
| 4 | Engine management, communication | 12H |
| 4 | Engine management, communication | 17E |
| 5 | Powertrain control unit, status | 12H |
| 5 | Powertrain control unit, status | 17E |
| 6 | Steering wheel angle, signal | 6J |
| 6 | Steering wheel angle, signal | 11H |
| 6 | Steering wheel angle, signal | 23E |
| 6 | Steering wheel angle, signal | 28E |
| 7 | Electrical power steering control unit, status | 18H |
| 8 | Power steering, actuation | 24H |
| 9 | Parking system control unit, status | 34E |
| A40/16 | Head unit/instrument cluster display cluster | 40D |
| A91b1 | Electric power steering torque sensor | 13J |
| A91m1 | Electric power steering actuator motor | 25J |
| CAN D | Diagnostic CAN | 5B |
| CAN D | Diagnostic CAN | 33H |
| CAN HMI | User interface CAN | 33C |
| Flex E | Chassis FlexRay | 5E |
| Flex E | Chassis FlexRay | 11D |
| Flex E | Chassis FlexRay | 5G |
| Flex E | Chassis FlexRay | 5K |
| Flex E | Chassis FlexRay | 16F |
| Flex E | Chassis FlexRay | 11H |
| Flex E | Chassis FlexRay | 23F |
| Flex E | Chassis FlexRay | 27F |
| Flex E | Chassis FlexRay | 33F |
| HSVL | High-speed video link | 38C |
| N127 | Drivetrain control unit | 8J |
| N133/1 | Instrument cluster control unit | 35D |
| N3/10 | ME-SFI [ME] control unit | 2H |
| N3/9 | CDI control unit | 2H |
| N30/4 | Electronic Stability Program (ESP®) control unit | 13F |
| N30/4 | Electronic Stability Program (ESP®) control unit | 25F |
| N62 | Parking system control unit | 2E |
| N62 | Parking system control unit | 35F |
| N68 | Electrical power steering control unit | 20G |
| N73 | Electronic ignition switch control unit | 8D |
| N73 | Electronic ignition switch control unit | 29F |
| N80 | Steering column module control unit | 2K |
| X11/4 | Diagnostic connector | 2C |
| X11/4 | Diagnostic connector | 35H |
