Remove/Install Regulator For Alternator - AR15.40-P-5760LWA

Engine 274.9 in model 205 (except 205.047/147/247)

Engine 274.9 in model 253 (except 253.354/954)

Shown on ALT (G2) in model 205.042

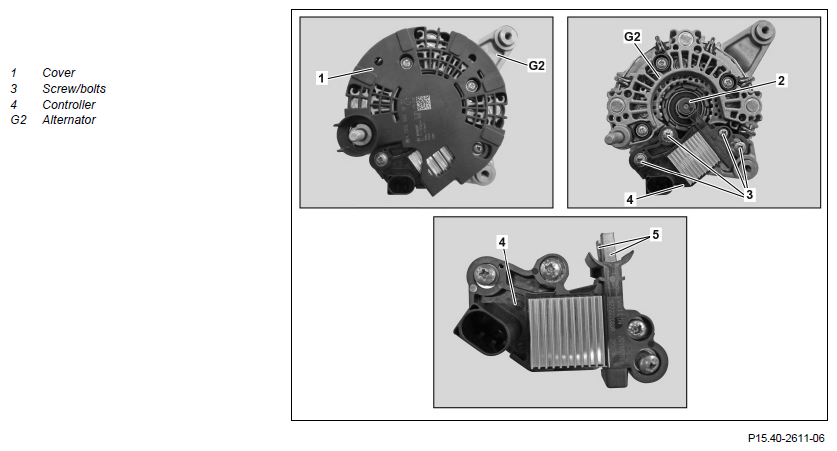

Fig 1: Regulator/Controller For Alternator Components Location - Engine 274.9 In Model 253 (Except 253.354/954) (Shown On ALT (G2) In Model 205.042)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove alternator (G2)		AR15.40-P-5032LWA
2	Take off cover (1)
3	Remove screw/bolt (3)	Bolt, regulator to alternator	*BA15.40-P-1005-01F
4	Remove regulator (4)
5	Install in the reverse order
