Remove/Install Starter - AR15.30-P-7100LWA

Engine 274.9 in model 205

Engine 274.9 in model 253

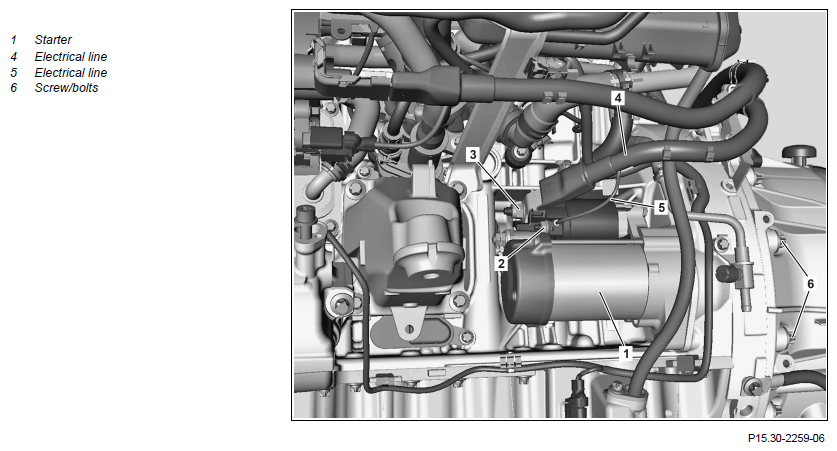

Fig 1: Starter Components Location - Engine 274.9 In Model 253

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Detach ground line from battery		AR54.10-P-0003LW
2	Remove center and rear lower Engine compartment paneling		AR61.20-P-1105LW
3	Detach electrical lines (4, 5) from starter (1)		AR15.30-P-7100-03LWA
		Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
		Nut, connection for terminal designation 50	*BA15.30-P-1002-01J
4	Remove screw/bolts (6) and remove starter (1)	Bolt, starter to crankcase/transmission	*BA15.30-P-1003-01J
5	Turn Engine at center bolt of the crankshaft and check starter ring gear on flywheel/drive plate for damage	When replacing the starter (1). Socket wrench bit If damage is present ↓ Replace flywheel/drive plate.	Fig 2
			AR03.30-P-8001MRA
6	Install in the reverse order

Fig 2: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
