Remove/Install Ignition Coils - AR15.12-P-2003MSC

Engine 256.9 In Model 167

MODIFICATION NOTES

20.05.2021 Special tool added. Operation step 7.

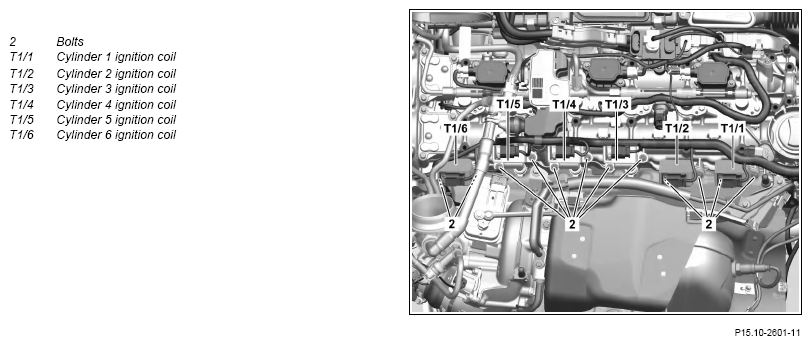

Fig 1: Ignition Coils Components Location - Engine 256.9 In Model 167
G14790185Courtesy of MERCEDES-BENZ USA

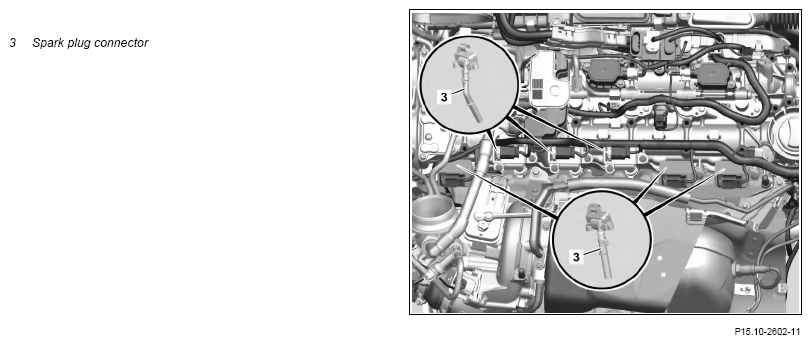

G14790186Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  when working on component parts and systems with U > = 30 V alternating voltage (AC) or U > = 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  To skin and eyes due to handling of Engine oil. Risk of poisoning  caused by swallowing Engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill Engine oil into beverage containers.
AS18.00-Z-0001-01A
Notice  Notes on avoiding damage to ignition system   AH15.10-P-0002-01V
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2 Remove Engine air intake duct downstream of air filter.   AR09.10-P-8130MSC
    INSTALLATION IMPORTANT : Do not install the upper Engine cover until an Engine test run has been performed.
3 Remove front noise insulation.
4 Remove bleed line from oil separator and seal openings with suitable stop plugs. SPECIAL TOOL Record plug Fig 3
5 Remove rear noise insulation.
6 Release and disconnect electrical connectors of ignition coils (T1/1 to T1/6).
7 Remove screws/bolts (2). TORQUE SPECIFICATION Screw/bolt, ignition coil to cylinder head cover *BA15.10-P-1001-04A
    SPECIAL TOOL Socket wrench bit
8 Detach ignition coils (T1/1 to T1/6) with spark plug connectors (3) upwards and remove. INSTALLATION NOTES
Apply spark plug connector grease in spark plug connectors (3) before installation to reduce withdrawal and insertion forces.
Otherwise damage will occur.
INSTALLATION IMPORTANT : Approx. Fill 1 g of spark plug connector grease into the spark plug connectors (3).

    Spark plug connector grease *BR00.45-Z-1102-06A
INSPECT Check
9 Check O-rings of bleed line for damage. If damage is present:

Replace bleed line.

10 Check ignition coils (T1/1 to T1/6) for external damage. If damage is present:

Replace corresponding ignition coil (T1/1 to T1/6).

11 Install in the reverse order.
WARNING Risk of accident  from vehicle starting off by itself when Engine running. Risk of injury  (bruises and burns) resulting from working on the Engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
12 Perform an Engine test run and check the Engine for proper function.
13 Install upper Engine cover.   AR01.10-P-2405MSC
IGNITION COIL

Number Designation Engine 256
BA15.10-P-1001-04A Screw/bolt, ignition coil to cylinder head cover Nm 8
Fig 2: Identifying Socket Wrench Bit (256 586 00 09 00)
G14548256Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1102-06A Spark plug connector grease A 002 989 80 51
