Remove/Install Accelerator Pedal - AR30.12-P-1321ME

Model 167

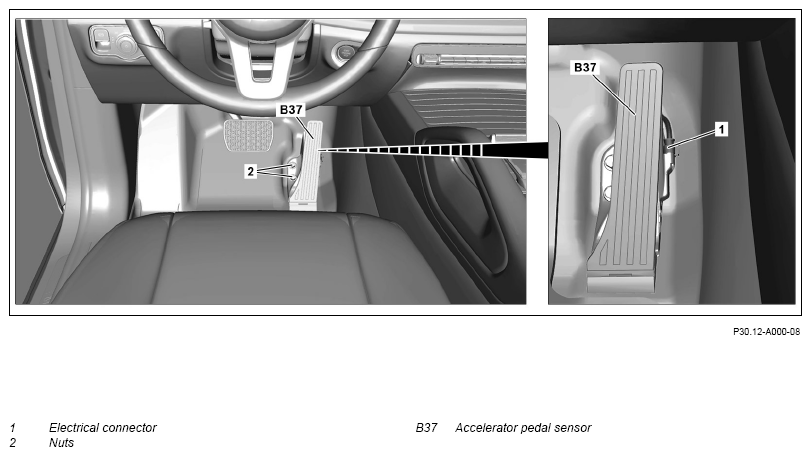

Fig 1: Accelerator Pedal Components Location - Model 167

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Unscrew nuts (2) and remove accelerator pedal sensor (B37).	Nut, accelerator pedal to firewall	*BA30.20-P-1001-03B
3	Release and disconnect electrical connector (1) from accelerator pedal sensor (B37).
4	Remove accelerator pedal sensor (B37).
5	Install in the reverse order.

ACCELERATOR PEDAL

Number	Designation		Model 167
BA30.20-P-1001-03B	Nut, accelerator pedal to firewall	Nm	8
