Remove/Install Accelerator Pedal - AR30.12-P-1321FR

Model 257

Model 290

Shown on model 257

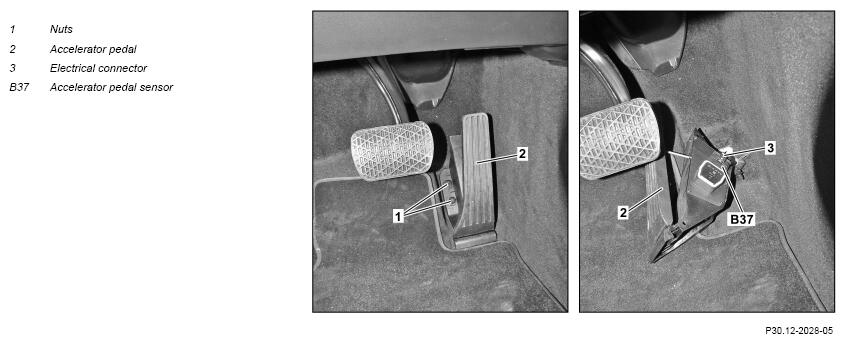

Fig 1: Accelerator Pedal Components Location - Model 290 (Shown On Model 257)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Unscrew nuts (1).	Nut/screw, accelerator pedal to firewall	*BA30.20-P-1001-03B
3	Remove accelerator pedal (2) and place to one side.
4	Disconnect electrical connector (3) from accelerator pedal sensor (B37).
5	Remove accelerator pedal (2).	Do not disassemble accelerator pedal (2). It can be damaged and must be replaced otherwise.
6	Install in the reverse order.

ACCELERATOR PEDAL

Number	Designation			Model 257	Model 290
BA30.20-P-1001-03B	Nut/screw, accelerator pedal to firewall	Stage 1	Nm	8	8
		Stage 2	Nm	-	-
