Remove/Install Distronic Sensor (DTR) - AR30.30-S-1010E
Model 447.8, 448.8
With Code ET4 (Active Distance Assist DISTRONIC)
except code XM0 (Facelift)
Model 447
With Code JP2 (Driving Assistance package)
except code XM0 (Facelift)
Fig 1: Distronic Sensor/Control Unit Components Location - Model 447 With Code JP2 / 447.8 With Code ET4 Except Code XM0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

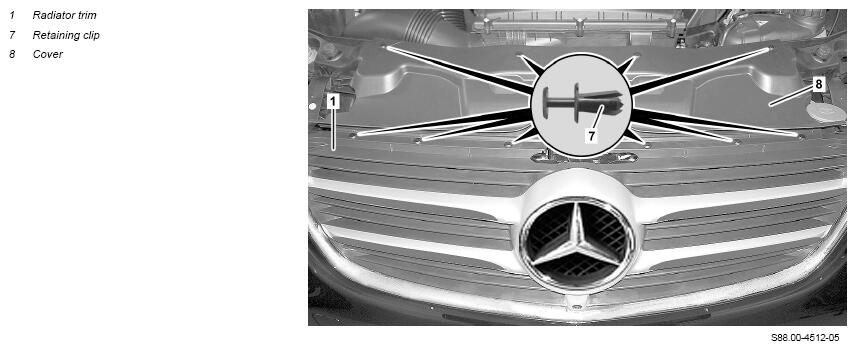

| 2 | Remove retaining clips (7) and remove cover (8) | For damage ↓ Replace respective retaining clip (7) |
|

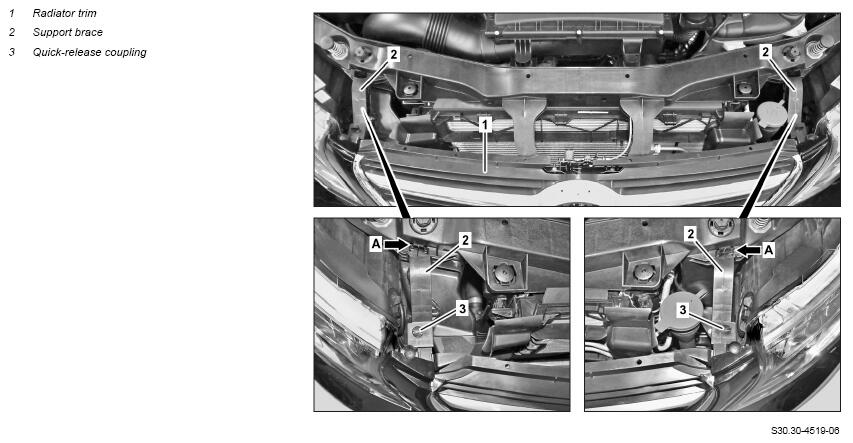

| 3 | Open quick-release coupling (3), remove catch hook (arrows A) and remove fitting (2) | ||

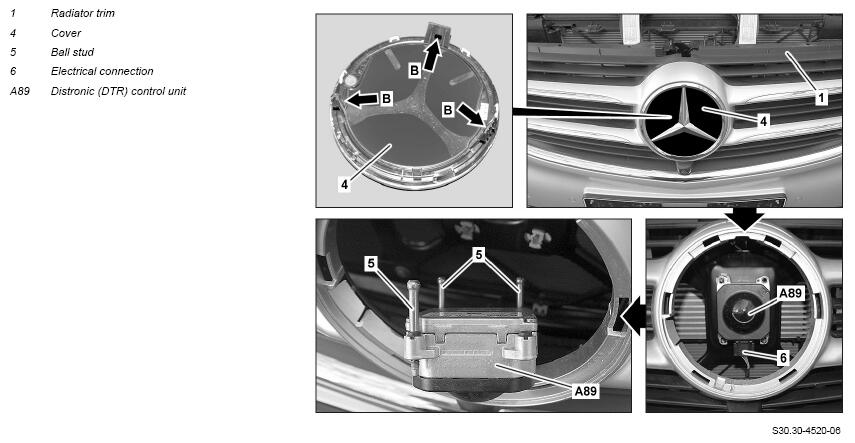

| 4 | Push radiator trim (1) slightly to the front, unlock locks (arrows B) and remove cover (4) | ||
| 5 | Pull DISTRONIC (DTR) control unit (A89) out of the holder | ||
| 6 | Unlock and detach electrical connection (6) on DISTRONIC (DTR) control unit (A89) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform adjustment of the DISTRONIC (DTR) control unit (A89) with diagnostic system | ||
| AD00.00-S-2000-04E | |||
| 000 588 17 21 00 Adjusting device | WS30.00-P-0006B |
