Engine Starter, Component Description - GF15.30-P-2000A

Model 223

Courtesy of MERCEDES-BENZ USA

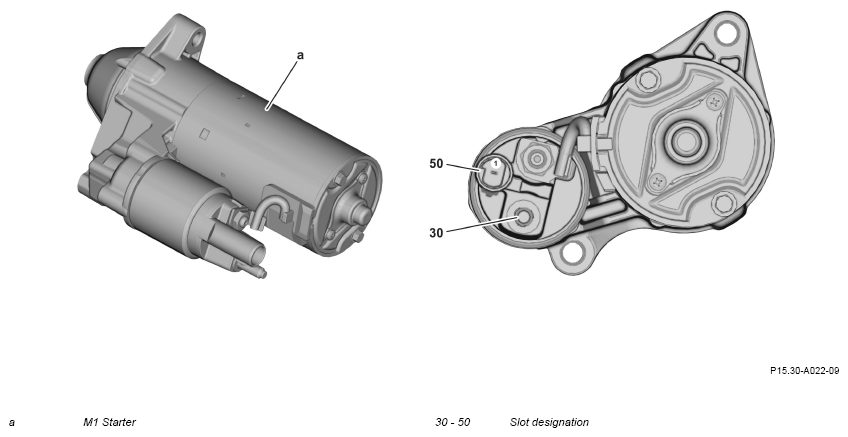

Depiction valid for model 223 with engine M656

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

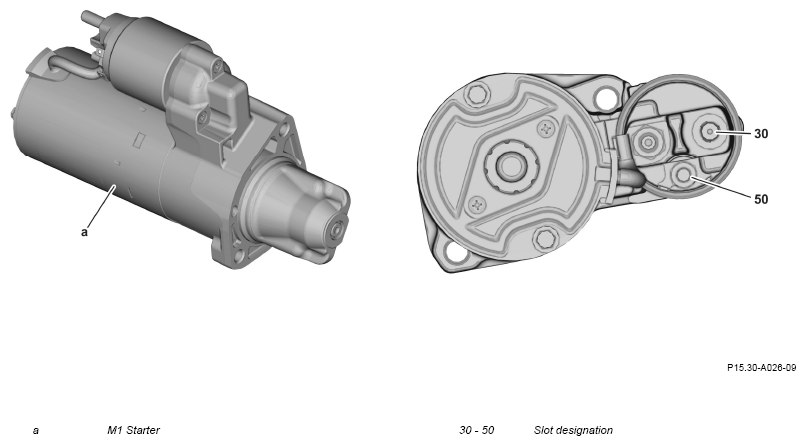

Depiction valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

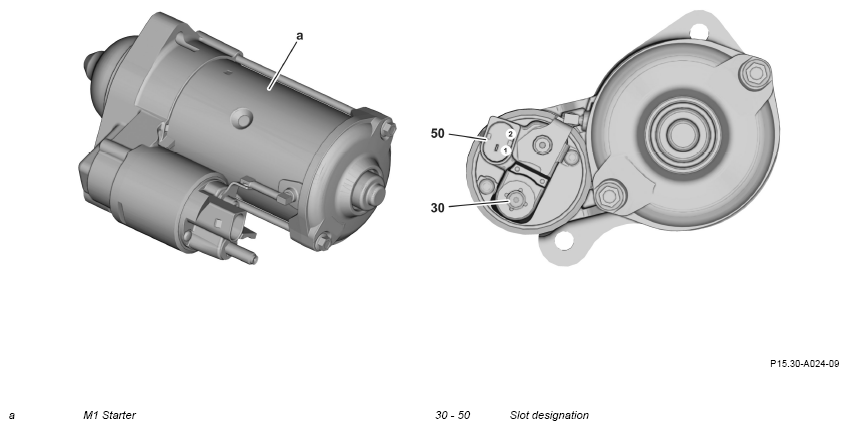

Depiction valid for model 223 with engine M279

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

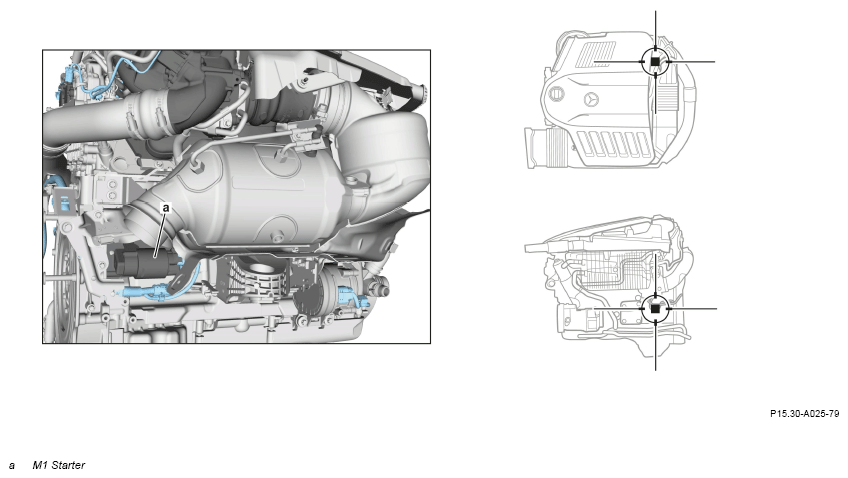

Arrangement in model 223 with engine M656

Courtesy of MERCEDES-BENZ USA

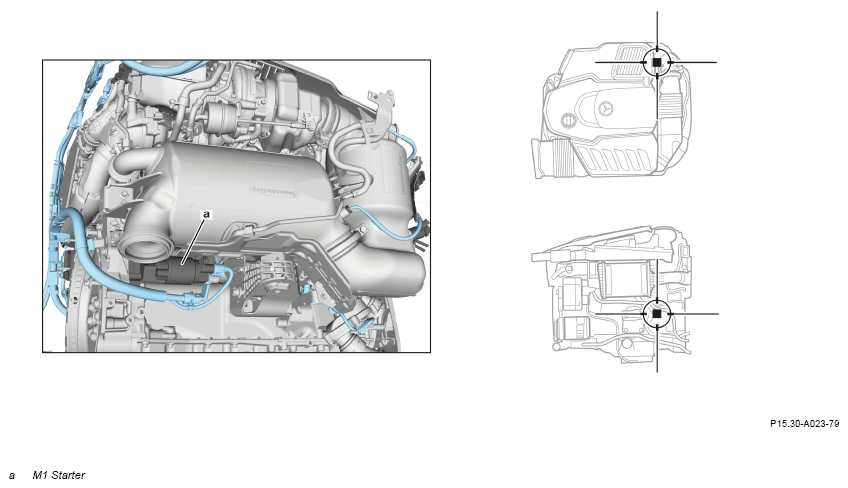

Arrangement in model 223 with engine M256

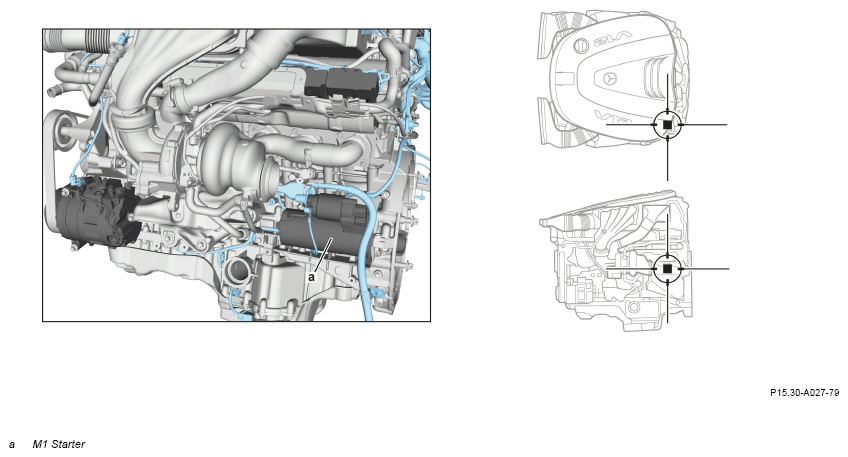

Fig 1: Starter Components Location - Model 223 With Engine 279

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M279
