Remove/Install Left Rear Knock Sensor - AR15.12-P-2187SC
Engine 176 in model 223
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left air filter housing. | AR09.10-P-1151SC | |

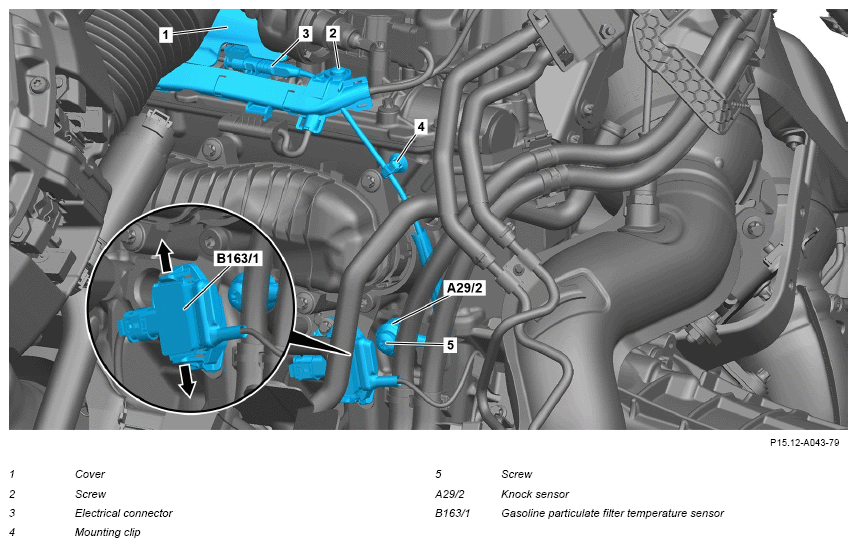

| 2 | Remove cover (1). | ||
| 3 | Remove steering coupling. | AR46.10-P-8000S | |
| 4 | Remove screw (2). | *BA15.18-P-1001-01G | |
| 5 | Remove the electrical connector (3), unlock and disconnect it. | ||
| 6 | Unclip retaining clip (4). | Fig 2 | |
| 7 | Push both catch tabs outward (arrows) and unclip gasoline particulate filter temperature sensor (B163/1). | Engine 176 in model 223 with code 961 (Exhaust system with OPF, generation 2.0) |
|
| 8 | Unscrew screw (5) and remove knock sensor (A29/2) downward. | The contact surface must be free from soiling. Malfunction of knock sensor (A29/2) will otherwise occur. |
*BA15.10-P-1001-02G |
| 9 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Conduct engine test run while checking for proper operation of the engine. |
KNOCK SENSORS
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.10-P-1001-02G | Bolt, knock sensor to crankcase | Nm | 20 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.18-P-1001-01G | Bolt, engine wiring harness to cylinder head cover | Nm | 9 |
