Remove/Install Right Front Knock Sensor - AR15.12-P-2188SC

Engine 176 in model 223

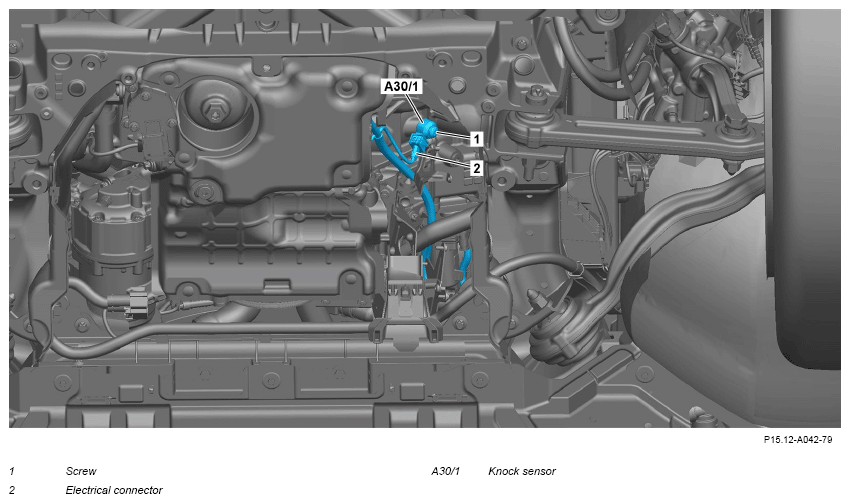

Fig 1: Right Front Knock Sensor Components Location - Model 223 With Engine 176

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front axle differential.	Engine 176 in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0525S
2	Remove motor control module (N3/10).		AR07.08-P-7013SC
3	Release and disconnect the electrical connector (2).
4	Unscrew screw (1) and remove knock sensor (A30/1) downward.	: The contact surface must be free from soiling. Malfunction of knock sensor (A30/1) will otherwise occur. Bolt, knock sensor to crankcase	*BA15.10-P-1001-02G
5	Install in the reverse order.
	Check
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
6	Conduct engine test run while checking for proper operation of the engine.

KNOCK SENSORS

Number	Designation		Engine 176
BA15.10-P-1001-02G	Bolt, knock sensor to crankcase	Nm	20
