Remove/Install Regulator For Alternator - AR15.40-P-5760SVZ

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

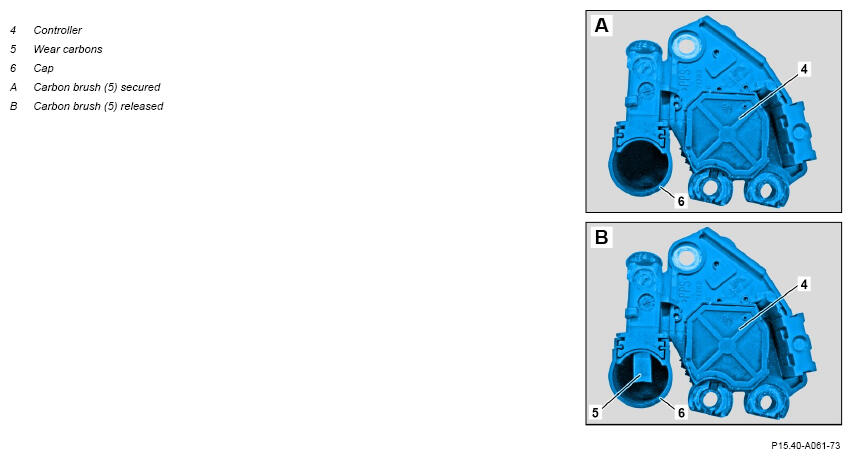

Shown on removed controller (4)

Courtesy of MERCEDES-BENZ USA

	Remove/install

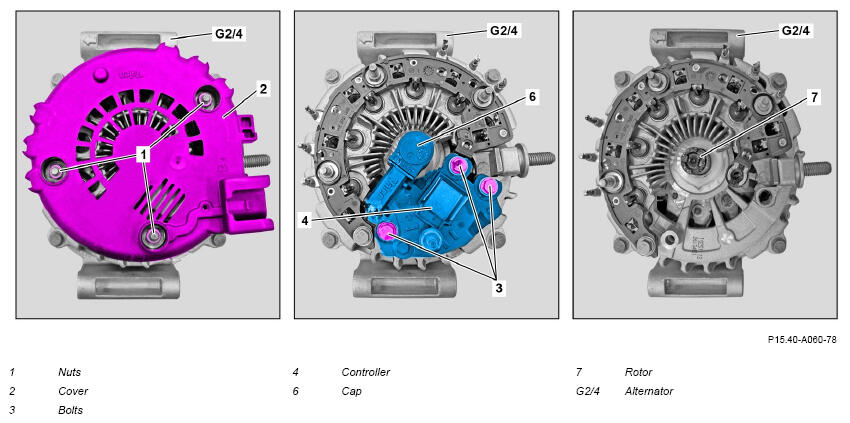

1	Remove alternator (G2/4).		AR15.40-P-5032SVZ
2	Remove nuts (1) and remove cover (2).	Bolt/nut, cover to alternator	*BA15.40-P-1005-01R
3	Unscrew screws (3) and remove controller (4).	: In the case of a new controller (4), carbon brushes (5) are secured (A). Press on cover (6) to release (B) and secure carbon brushes (5). Bolt, regulator to alternator	*BA15.40-P-1006-01R
4	Install in the reverse order.

ALTERNATOR

Number	Designation		Engine 279
BA15.40-P-1005-01R	Bolt/nut, cover to alternator	Nm	3

ALTERNATOR

Number	Designation		Engine 279
BA15.40-P-1006-01R	Bolt, regulator to alternator	Nm	3
