Remove/Install Accelerator Pedal - AR30.12-P-1321LF

Model 205

Model 217

Model 222

Model 253

Model 293

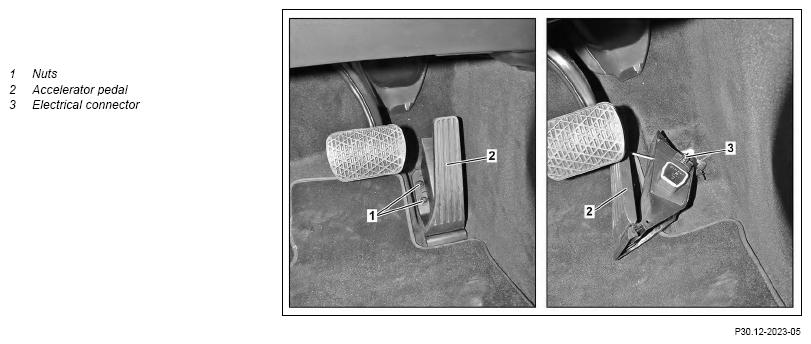

Shown on model 222

Fig 1: Accelerator Pedal Component Location - Model 217 (Shown On Model 222)

Courtesy of MERCEDES-BENZ USA

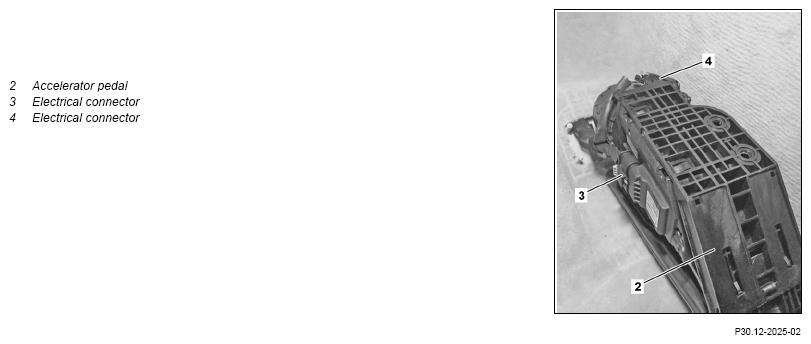

Shown on model 205 (with code ME05 (HYBRID DRIVE 80KW-VARIANT (INCLUDING PLUG-IN)))

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Switch off ignition.
2	Unscrew nuts (1), remove accelerator pedal (2) and place to one side.	Ensure that the wiring harness is not pinched. Otherwise malfunctions of the accelerator pedal (2) can occur.
		Nut, accelerator pedal to firewall	*BA30.20-P-1001-03B
3	Disconnect electrical connector (3).
4	Disconnect electrical connection (4).	Model 205, 222, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 293
5	Remove accelerator pedal (2).	The accelerator pedal (2) must not be disassembled. It can be damaged and must be replaced otherwise.
6	Install in the reverse order
