Integrated Starter Alternator Controller Unit, Component Description - GF15.40-P-2104A

Model 223 with engine 176

Model 223 with engine 256

Courtesy of MERCEDES-BENZ USA

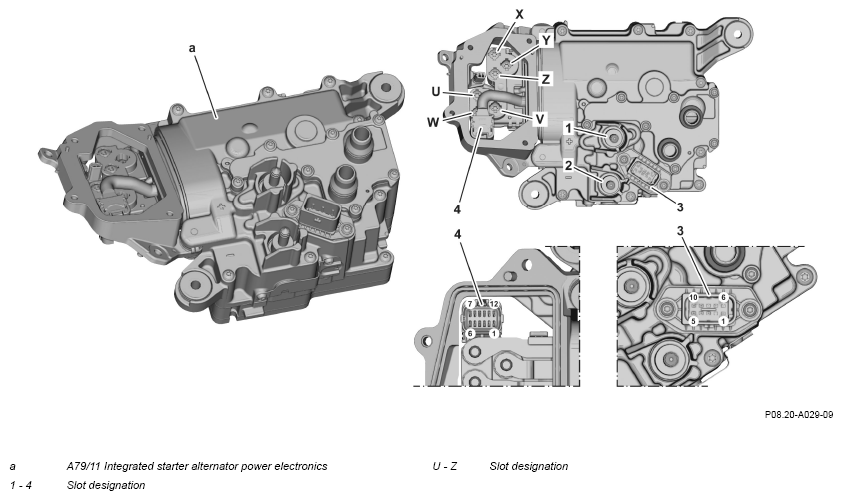

Image valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

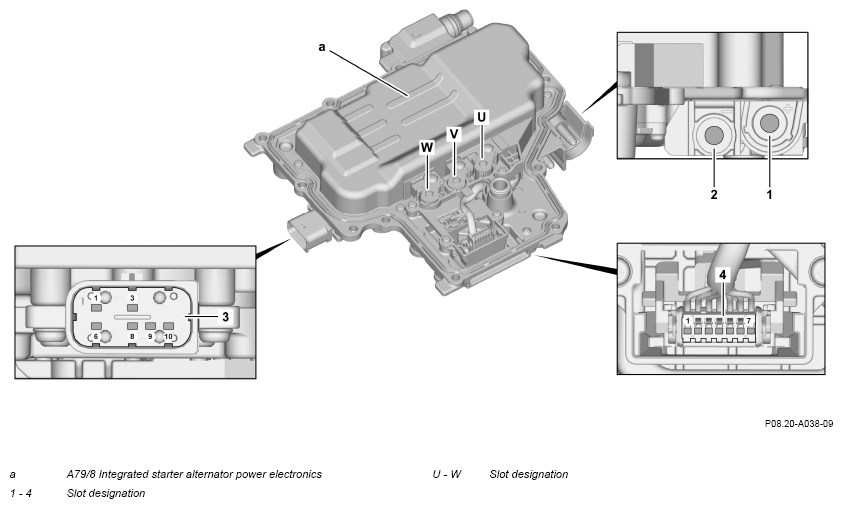

Image valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Integrated Starter Alternator Controller Unit Components Location - Model 223 With Engine 256

Courtesy of MERCEDES-BENZ USA

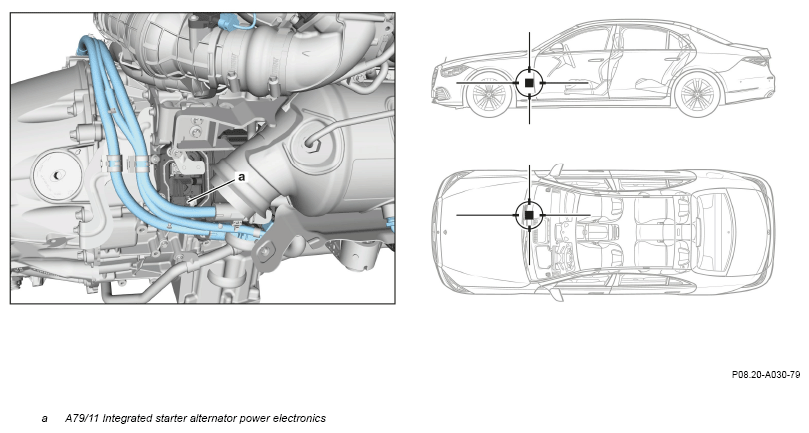

Arrangement in model 223 with engine 256

Fig 2: Integrated Starter Alternator Controller Unit Components Location - Model 223 With Engine 176

Courtesy of MERCEDES-BENZ USA

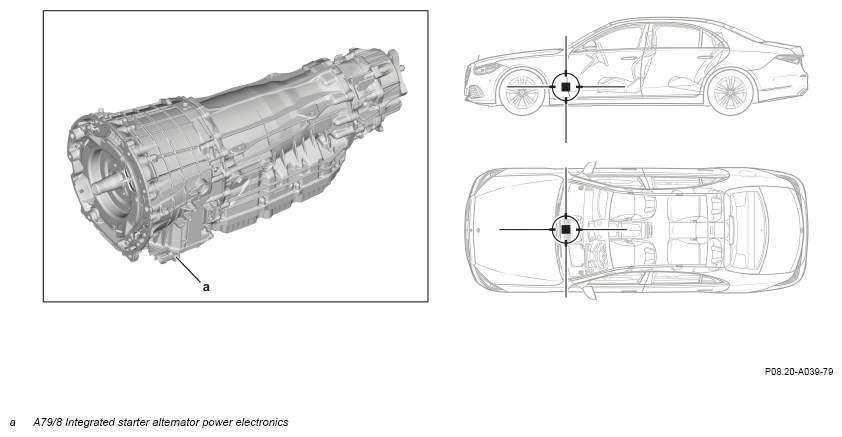

Arrangement in model 223 with engine M176
