Remove/Install Right Rear Knock Sensor - AR15.12-P-2189SC
Engine 176 in model 223
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove front axle differential. | Engine 176 in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR33.30-P-0525S |

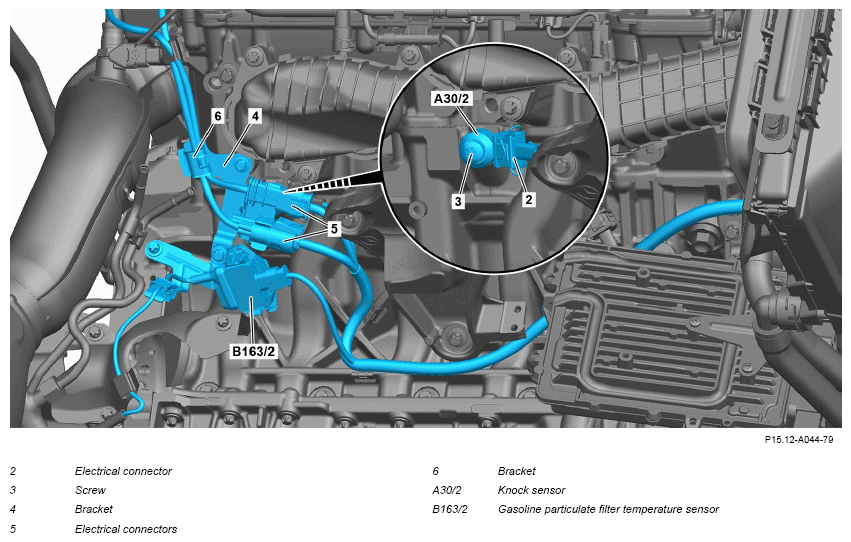

| 2 | Unclip electric lines from bracket (6). | ||
| 3 | Unclip electrical connectors (5) and place to one side. | ||
| 4 | Press both catch tabs outward and unclip gasoline particulate filter temperature sensor (163/2). | Engine 176 in model 223 with code 961 (Exhaust system with OPF, generation 2.0) |
|
| 5 | Remove bracket (4). | *BA15.18-P-1003-03D | |
| 6 | Release and disconnect the electrical connector (2). | ||
| 7 | Unscrew screw (3) and remove knock sensor (A30/2) downward. | The contact surface must be free from soiling. Malfunction of knock sensor (A30/2) will otherwise occur. |
*BA15.10-P-1001-02G |
| 8 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run while checking for proper operation of the engine. |
KNOCK SENSORS
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.10-P-1001-02G | Bolt, knock sensor to crankcase | Nm | 20 |
48 V ON-BOARD ELECTRICAL SYSTEM SUBHARNESS
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA15.18-P-1003-03D | Holder, 48 V connectors to cylinder head/transmission | Nm | 8 |
