Long-Range Radar Sensor, Component Description - GF30.30-P-3125A

Model 223

Courtesy of MERCEDES-BENZ USA

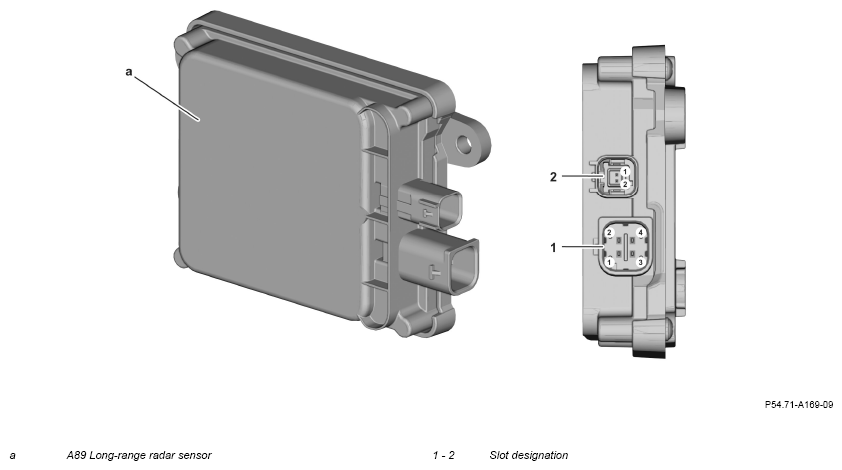

Depiction valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

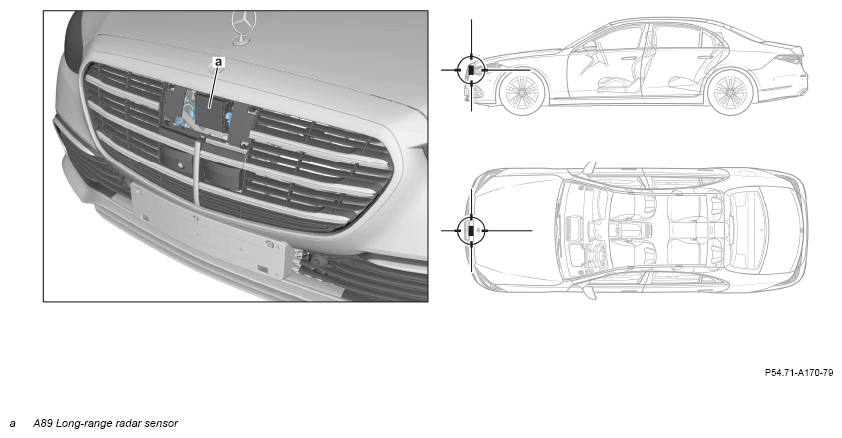

Fig 1: Long-Range Radar Sensor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223
