Remove/Install Alternator Belt Pulley - Ar15.40-D-5710TSC

Engine 274 in model 907

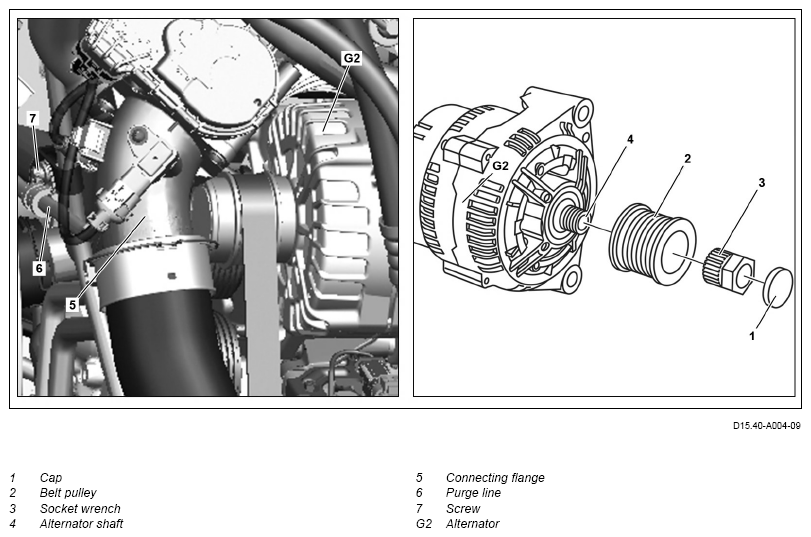

G13789896

	Remove/install
1	Remove connecting flange (5).		AR07.70-D-0005TSC
2	Unscrew screw (7) and place purge line (6) outside of working area.	M6	*BA00.10-N-1002-01A
3	Remove cap (1).	: Replace cover (1).
4	Remove poly-V-belt from alternator (G2).		AR13.22-D-1202TSC
5	Counterhold alternator shaft (4) with socket wrench socket and remove belt pulley (2) with socket wrench (3).	Commercially available devices/tools Internal serration socket size 10 Belt pulley to alternator	*BA15.40-N-1003-01X
		Socket wrench	Fig 1
6	Install in the reverse order

TORQUE SPECIFICATION

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			8.8	10.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	9	13
BA00.10-N-1002-01A	M6	Phosphated	Nm	9	12

TORQUE SPECIFICATION

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			12.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	16
BA00.10-N-1002-01A	M6	Phosphated	Nm	14

TORQUE SPECIFICATION

ALTERNATOR

Number	Designation		Engine 274 in model 907
BA15.40-N-1003-01X	Belt pulley to alternator	Nm	80

Fig 1: Socket Wrench (602 589 00 10 00)

G13789897
