Remove/Install Alternator Belt Pulley - Ar15.40-D-5710TSR

Engine 651 in model 907

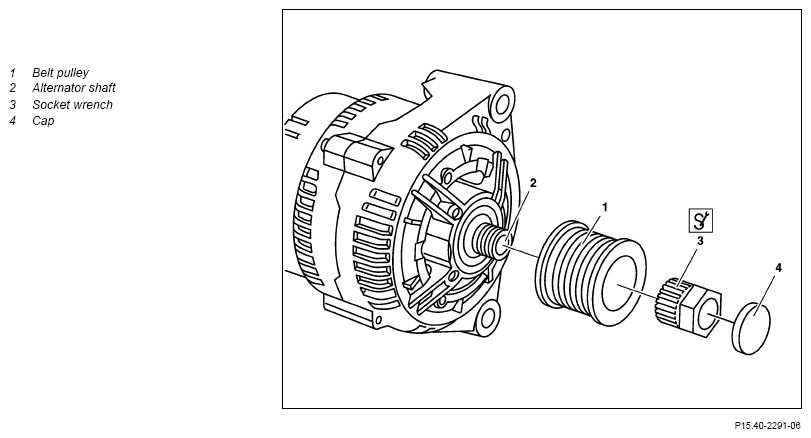

	Remove/install
1	Remove alternator		AR15.40-D-5032TSR
2	Remove cap (4)
3	Use socket wrench (3) to unbolt belt pulley (1)	To do this counterhold alternator shaft (2) with a screwdriver bit. Poly-V belt pulley on alternator shaft	*BA15.40-N-1003-01TS
		Screwdriver bit	Fig 2
		Socket wrench	Fig 1
4	Install in the reverse order

ALTERNATOR

Number	Designation		Model 907 with engine 651
BA15.40-N-1003-01TS	Poly-V belt pulley on alternator shaft	Nm	75

Fig 1: Socket Wrench (602 589 00 10 00)

Fig 2: Screwdriver Bit (601 589 00 10 00)
