Remove/Install Coolant Temperature Sensor - Ar15.60-D-2712TSV
Engine 642 in model 907
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-D-1142TSR | |
| 2 | Remove trim panel on left cylinder head cover | AR01.20-D-5018TSV | |

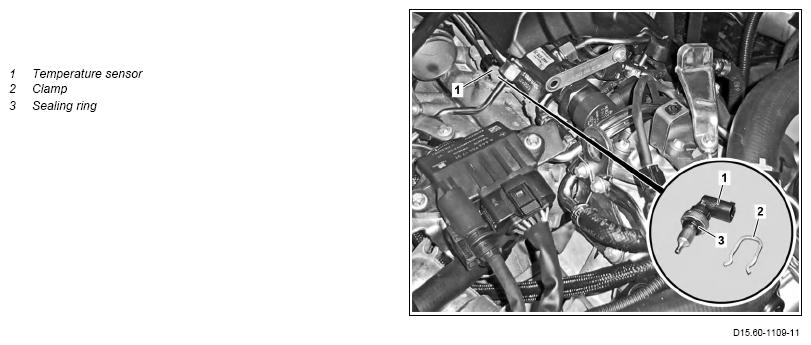

| 3 | Disconnect electrical connector for temperature sensor (1) | ||
| 4 | Remove clamp (2) | ||
| 5 | Remove temperature sensor (1) | ||
| 6 | Install in the reverse order |
