Remove/Install Regulator For Alternator - Ar15.40-D-5760TSV

Engine 642 in model 907

	Remove/install
1	Remove alternator		AR15.40-D-5032TSV

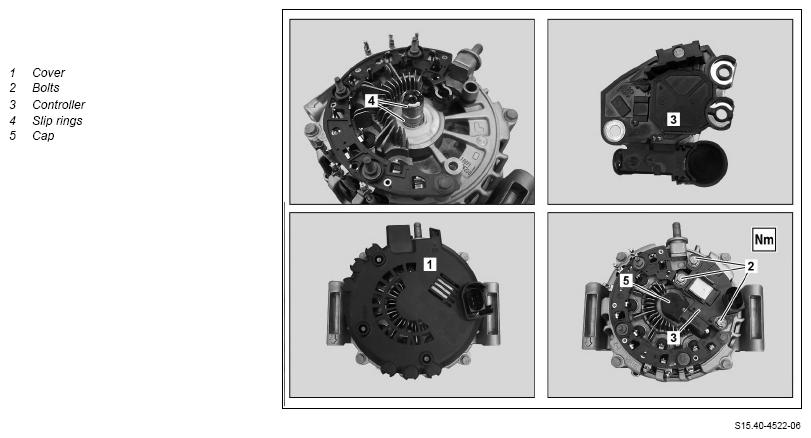

2	Remove cover (1)	For this purpose, unclip cover (1) at engagements. : Check engagements of cover (1) for damage. If damage is present ↓ Replace cover (1).
3	Remove screw/bolts (2)	Bolt, regulator to alternator	*BA15.40-N-1004-01TSV
4	Remove regulator (3)	: Always replace controller (3). Carbon brushes of new controller (3) are retained by cover (5). Once screws (2) are tightened, cover (5) must be pressed into end position so that carbon brushes are in contact with slip rings (4). Malfunctions may occur otherwise. Check condition of slip ring (4). In case of damage or severe wear of slip rings (4) ↓ Replace alternator.
5	Install in the reverse order

ALTERNATOR

Number	Designation			Engine 642 in model 907
BA15.40-N-1004-01TSV	Bolt, regulator to alternator	M4x19	Nm	3
		M4x13	Nm	2
