Remove/Install Regulator For Alternator - Ar15.40-S-5760EG
Model 907 with engine 274
| Remove/install | |||
| 1 | Remove the alternator (G2). | Model 907 with engine 274 | AR15.40-D-5032TSC |

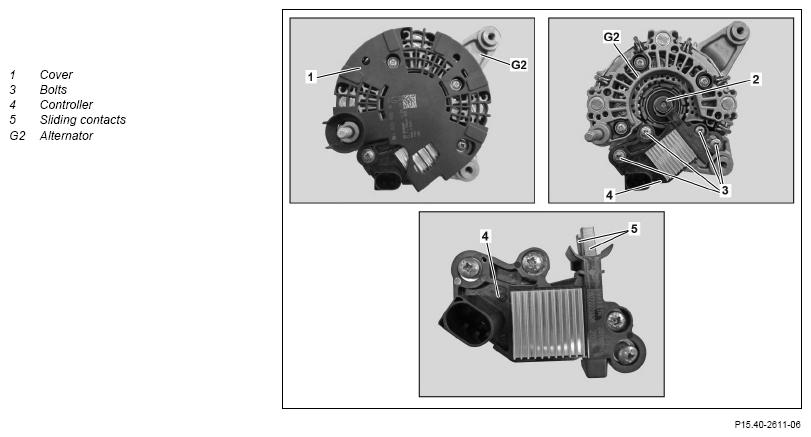

| 2 | Remove cover (1). | ||
| 3 | Remove screw/bolts (3). | *BA15.40-N-1004-01X | |
| 4 | Remove controller (4). | Do not damage sliding contacts (5). Malfunctions may occur otherwise. |
|
| 5 | Install in the reverse order. |
| Number | Designation | Engine 274 in model 907 | ||
|---|---|---|---|---|
| BA15.40-N-1004-01X | Bolt, regulator to alternator | M4x13 | Nm | 2 |
| M4x19 | Nm | 3 | ||
