Risk of injury
. Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
| |
Risk of death
when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) |
Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. |
AS00.00-Z-0035-01A |
| |
Notes on avoiding damage to ignition system |
|
AH15.10-P-0002-01V |
| |
Notes on avoiding damage through contamination and foreign objects |
|
AH00.00-P-5000-01A |
 |
Remove |
|
|
| 1 |
Remove ignition coils. |
|
AR15.12-D-2003TSC |
 |
Clean |
|
|
| 2 |
Use compressed air to blow out any dirt residue in the spark-plug recesses. |
Set of protective covers |
Fig 1 |
| |
|
Record plug |
Fig 3 |
| 3 |

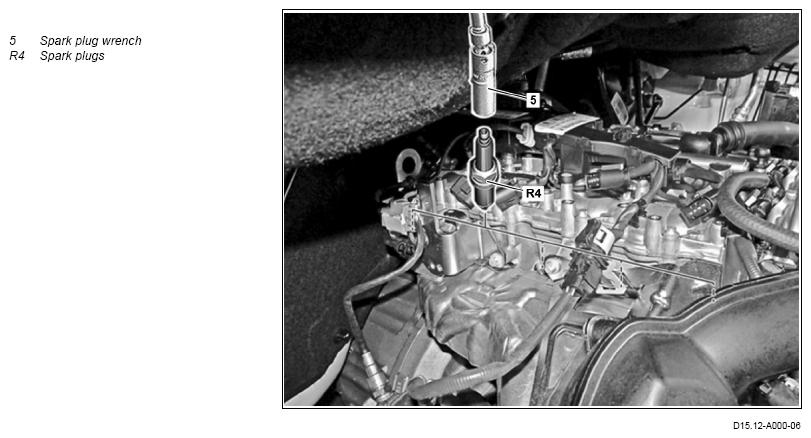

Remove spark plugs (R4) with spark plug wrench (5) from cylinder head. |
Spark plug to cylinder head |
*BA15.10-N-1001-01D |
| |
|
Spark plug wrench |
Fig 2 |
| 4 |
Install in the reverse order. |
|
|
