Remove/Install Starter - Ar15.30-D-7100TSC
Engine 274 in model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Clamp off ground line of on-board electrical system battery (G1). | AR54.10-D-0029TS | |
| 2 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 3 | Unscrew nuts (3, 5) and remove electric lines (1, 2) from starter (M1). | *BA15.30-N-1002-01W | |
| 4 | Unscrew screw/bolts (4). | *BA15.30-N-1001-01W | |
| 5 | Remove starter (M1) downward. | ||
| Check | |||
| 6 | Check pinion of the starter (M1) for damage and wear. | If the starter (M1) is reused. If wear or damage is detected: ↓ Replace starter (M1). |
|

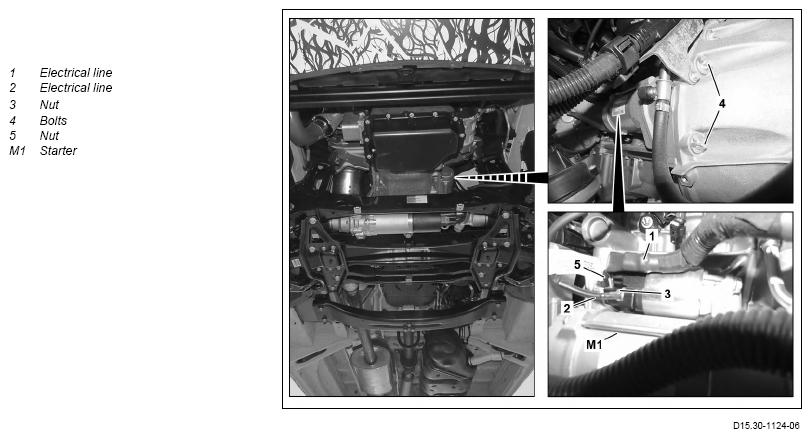

| 7 | Check ring gear on flywheel/drive plate for wear and damage. | Fig 1 | |
If wear or damage is detected: ↓ Replace flywheel/drive plate. |
AR03.30-D-8003TSC | ||
| 8 | Install in the reverse order. |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA15.30-N-1001-01W | Bolt, starter to crankcase | Nm | 40 |
| Number | Designation | Engine 274 in model 907 | ||
|---|---|---|---|---|
| BA15.30-N-1002-01W | Nut, line to starter | M6 | Nm | 6 |
| M8 | Nm | 15 | ||
