Remove/Install Starter - Ar15.30-D-7100TSR

Engine 651 in model 907

MODIFICATION NOTES

07.08.2019

Method adapted

Operation steps 2 to 12

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Detach ground line of on-board electrical system battery.		AR54.10-D-0029TS

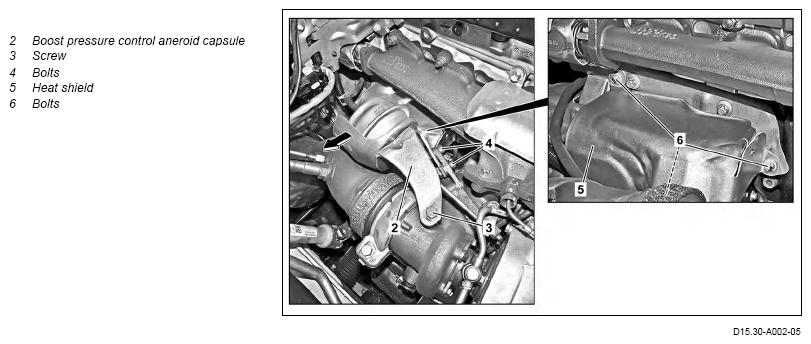

2	Remove vacuum hose from boost pressure control diaphragm capsule (2).
3	Remove screws/bolts (4). Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
		Bolt, diaphragm capsule bracket at side to exhaust gas turbocharger	*BA09.40-N-1009-02TSR
		Plug-in adapter	Fig 1
4	Position boost pressure control diaphragm capsule (2) together with the bracket outside of the working area (arrow).	Remove screw (3) to do this. Bolt, holder for diaphragm capsule to exhaust gas turbocharger	*BA09.40-N-1008-02TSR
5	Remove the heat shield (5).	To do so, remove the screw/bolts (6). Bolt, starter heat shield to bracket	*BA15.30-N-1006-01TS

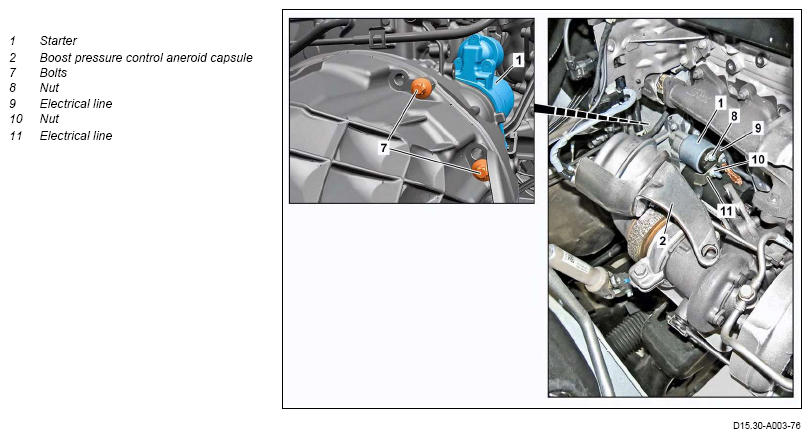

6	Remove electrical wiring harness (9) from starter (1).	For this purpose, remove nut (8). Nut, electrical line to starter	*BA15.30-N-1003-01TS
7	Remove electric line (11) from starter (1).	For this purpose, remove nut (10). Nut, electrical line to starter	*BA15.30-N-1003-01TS
8	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
9	Remove underbody paneling.	Model 907 with code XM1 (Noise abatement measures)	AR61.30-D-1001TS
10	Remove bolts_(7).	Bolt, starter to crankcase	*BA15.30-N-1001-01TS
11	Lower vehicle.
12	Remove starter (1).	To do this, guide out starter (1) between the boost pressure control diaphragm capsule (2) and exhaust manifold.
	Check
13	Check ring gear on flywheel or drive plate for damage and wear.	To do so, rotate engine at crankshaft in direction of engine rotation. Counterholder	Fig 3
		Counterholder	Fig 2
		In the case of damage, ↓ Replace flywheel or drive plate. Remove/install drive plate	AR03.30-D-8003TSR
		Engine 651 in model 907 with transmission 722.9 Remove/install a flywheel	AR03.30-D-8002TSR
14	Check starter drive pinion for damage and wear.	In the case of damage, ↓ Replace starter (1).
15	Install in the reverse order.

EXHAUST GAS TURBOCHARGER, OIL LINES

Number	Designation		Engine 651 in model 907
BA09.40-N-1008-02TSR	Bolt, holder for diaphragm capsule to exhaust gas turbocharger	Nm	25

EXHAUST GAS TURBOCHARGER, OIL LINES

Number	Designation		Engine 651 in model 907
BA09.40-N-1009-02TSR	Bolt, diaphragm capsule bracket at side to exhaust gas turbocharger	Nm	9

STARTER

Number	Designation		Engine 651 in model 907
BA15.30-N-1001-01TS	Bolt, starter to crankcase	Nm	40

STARTER

Number	Designation			Engine 651 in model 907
BA15.30-N-1003-01TS	Nut, electrical line to starter	M6	Nm	6
BA15.30-N-1003-01TS	Nut, electrical line to starter	M8	Nm	16

STARTER

Number	Designation		Engine 651 in model 907
BA15.30-N-1006-01TS	Bolt, starter heat shield to bracket	Nm	9

Fig 1: Plug-In Adapter (651 589 00 07 00)

Fig 2: Counterholder (651 589 08 40 00)

Fig 3: Counterholder (651 589 00 40 00)
