Remove/Install Starter - Ar15.30-D-7100TSV
Engine 642 in model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 2 | Remove left engine carrier. | AR22.10-D-4350TSV | |
| 3 | Unscrew nuts (1, 2). | *BA15.30-N-1003-01TS | |
| 4 | Remove screw/bolts (3). | *BA15.30-N-1001-01TS | |
| 5 | Remove starter (4). | ||
| Check | |||
| 6 | Check ring gear at drive plate for damage and wear. | Engine 642 in model 907 with transmission 722.9 | AR01.00-D-0100-01TSV |

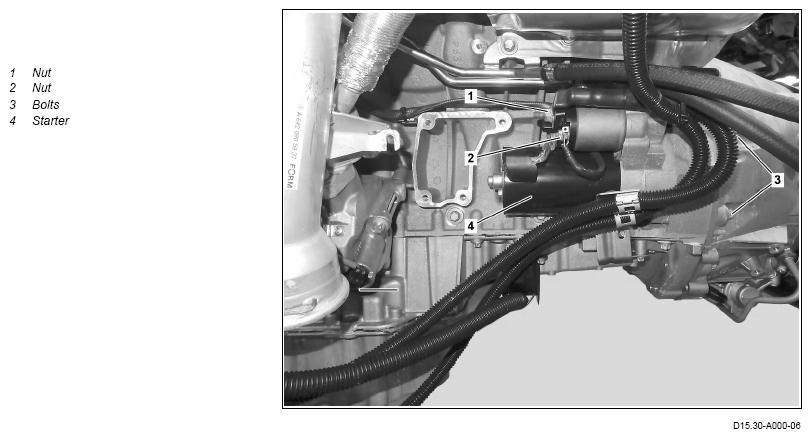

| Fig 1 | |||
| Depending on the findings, ↓ Replace drive plate. Remove/install drive plate |
AR03.30-D-8003TSV | ||
| 7 | Check starter drive pinion. | Depending on the findings, ↓ replace starter (4). |
|
| 8 | Install in the reverse order. |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA15.30-N-1001-01TS | Bolt, starter to crankcase | Nm | 40 |
| Number | Designation | Engine 642 in model 907 | ||
|---|---|---|---|---|
| BA15.30-N-1003-01TS | Nut, electrical line to starter | M6 | Nm | 6 |
| M8 | Nm | 16 | ||
