Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between vehicle lift columns anc position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |
Risk of injury
. Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
|
Risk of injury
. Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
| |
Notes on avoiding damage through contamination and foreign objects |
|
AH00.00-P-5000-01A |
| |
Information on preventing damage to electronic components due to electrostatic discharge |
|
AH54.00-P-0001-01A |
  |
Remove/install |
|
|
| 1 |
Raise vehicle. |
|
AR00.60-D-1000-04TS |
| |
Special instructions for lifting and supporting vehicle |
|
AH00.60-N-0100-01TS |
| 2 |

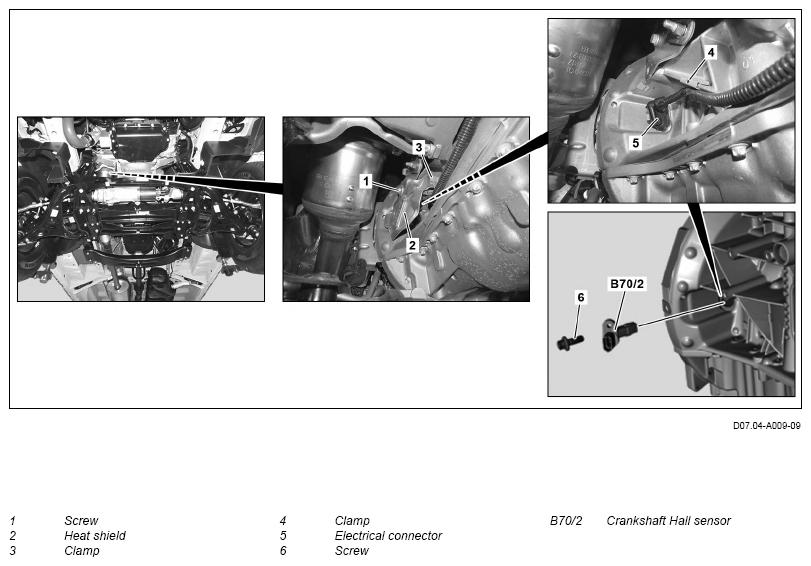

Remove screw (1) and pull heat shield (2) out of the clamp (3). |
M8 |
*BA00.10-N-1003-01A |
| 3 |
Remove clamp (4). |
|
|
| 4 |
Release and disconnect electrical connector (5). |
|
|
| 5 |
Remove screw (6) and remove crankshaft Hall sensor (B70/2). |
Screw/bolt, crankshaft position sensor to crankcase |
*BA15.10-N-1001-03F |
| 6 |
Install in the reverse order. |
|
|
 |
Check |
|
|
|
Risk of burn injuries
, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning
caused by skin contact with solid components of the exhaust. |
Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A |
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 7 |
Perform an engine test run and check the engine for proper function. |
|
|
