Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
  |
Remove/install |
|
|
| 1 |
Raise vehicle |
|
AR00.60-D-1000-04TS |
| |
Special instructions for lifting and supporting vehicle |
|
AH00.60-N-0100-01TS |
| 2 |
Remove lower engine compartment paneling |
If installed. |
AR61.20-D-1105TS |
| |
|
|
AR61.20-D-1105TS |
| 3 |
Disconnect electrical connection (1) |
|
|
| 4 |
Remove screw/bolt (2) |

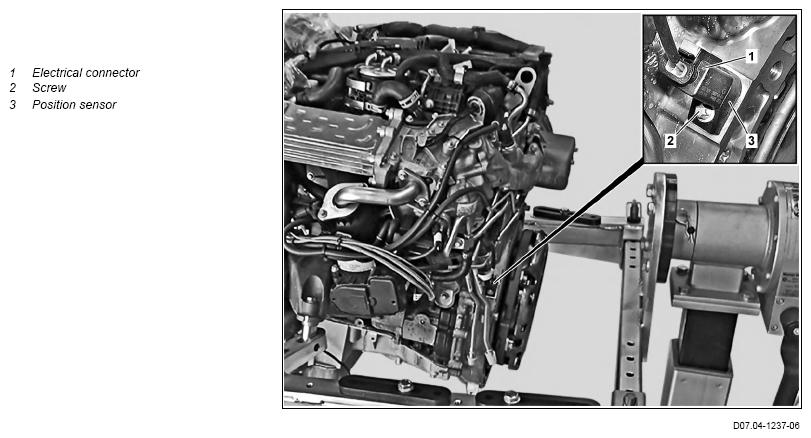

Screw/bolt, crankshaft position sensor to crankcase |
*BA07.04-N-1009-02TSR |
| 5 |
Remove position sensor (3) |
|
|
| 6 |
Install in the reverse order |
|
|
