Remove/Install Crankshaft Position Sensor - Ar07.04-D-0059TSV
Engine 642 in model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 2 | Remove lower engine compartment paneling | If installed. | |
| AR61.20-D-1105TS | |||

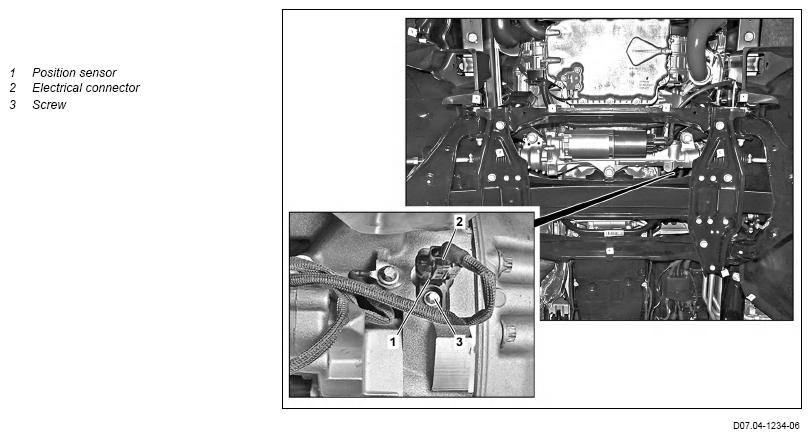

| 3 | Disconnect electrical connection (2) | ||
| 4 | Remove position sensor (1) | ||
| *BA07.04-N-1001-02TSV | |||
| 5 | Install in the reverse order | ||
| 6 | Read out fault memory with diagnostic device | ||
| Connect/disconnect diagnostic unit | AD00.00-D-2000-06TS | ||
| If faults are present ↓ Erase fault memory |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA07.04-N-1001-02TSV | Screw/bolt, crankshaft position sensor to crankcase | Nm | 9 |
