Risk of injury.
Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
  |
Remove/install |
|
|
| 1 |
Remove air filter housing |
|
AR09.10-D-1150TS |
| 2 |
Disconnect electrical connector (3) |
|
|
| 3 |
Remove screw/bolt (5) |
M6 |
*BA00.10-N-1002-01A |
| 4 |
Remove screw/bolt (4) |
Bolt, differential pressure sensor to bracket |
*BA07.04-N-1010-02TSR |
| 5 |
Remove hoses (2) from lines (1) |
Do not remove hoses (2) from differential pressure sensor (6).
Malfunction or damage can occur otherwise.
: Note assignment of hoses (2), replace clamps. |
|
| |
|
Pliers for click clamps |

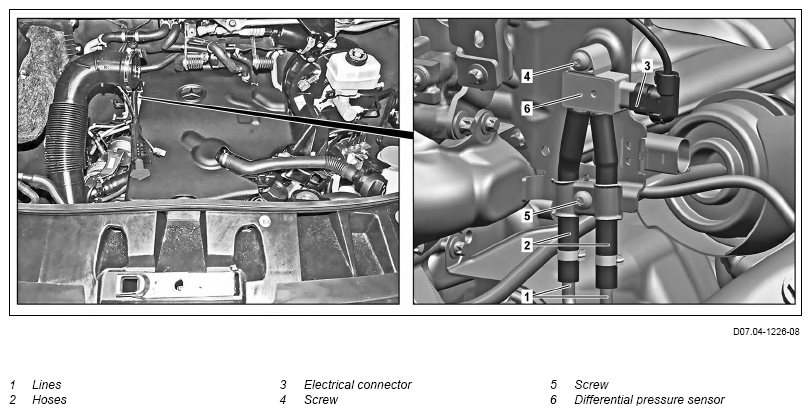

Fig 1 |
| 6 |
Remove differential pressure sensor (6) |
|
|
| 7 |
Install in the reverse order |
|
|
 |
Check |
|
|
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 8 |
Check for leaktightness with engine running |
Visual inspection only. |
|
