Remove/Install Exhaust Pressure Sensor - Ar07.04-D-0040TSR
Engine 651 in model 907
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing, safety glasses and respiratory protection. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine cover | AR01.10-D-2405TSR | |
| 2 | Disconnect electrical connection (2) | ||
| 3 | Remove exhaust pressure sensor (1) | ||
| *BA07.04-N-1006-02TSR | |||

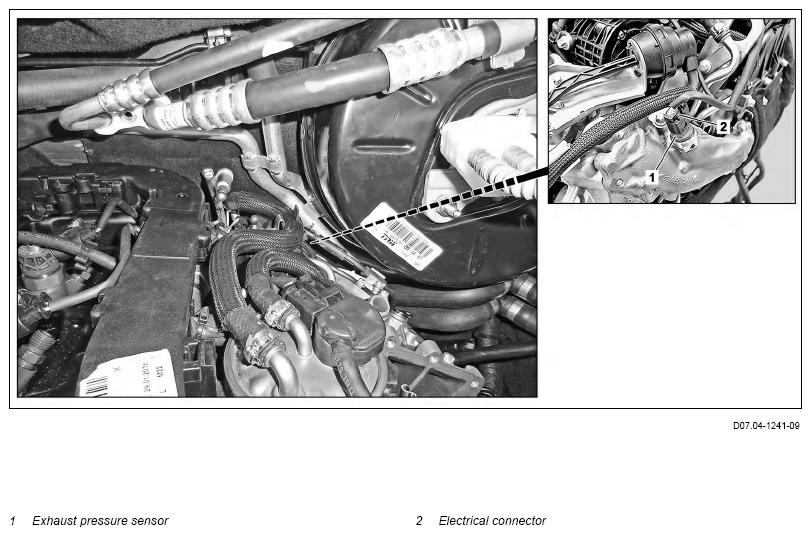

| Fig 1 | |||
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory with diagnostic system | ||
| Connect/disconnect diagnostic unit | AD00.00-D-2000-06TS | ||
| If faults exist. ↓ Erase the fault memory. |
|||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run and check exhaust pressure sensor (1) for leaks |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA07.04-N-1006-02TSR | Exhaust pressure sensor to exhaust gas recirculation pipe | Nm | 25 |
