Remove/Install Fuel Injection System Control Unit - Ar07.08-D-7011TSC
Engine 274 in model 907
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of the ME-SFI contro unit (N3/36). | If a new ME-SFI control unit (N3/36) is installed. | |
| AD00.00-D-2000-06TS | |||

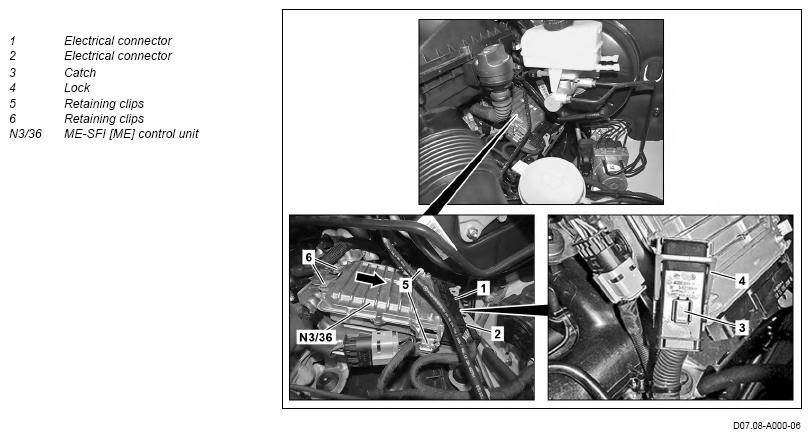

| 2 | Release and disconnect electrical connectors (1, 2). | ||
| 3 | Open retaining clamps (5), pull ME-SFI control unit (N3/36) in the direction of the arrow out of the retaining clamps (6), and remove ME-SFI control unit (3/36). | ||
| 4 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Conduct engine test run while checking for proper operation of the engine. |
