Remove/Install Intake Manifold Pressure Sensor - Ar07.04-D-0102TS
Engine 651 in model 907

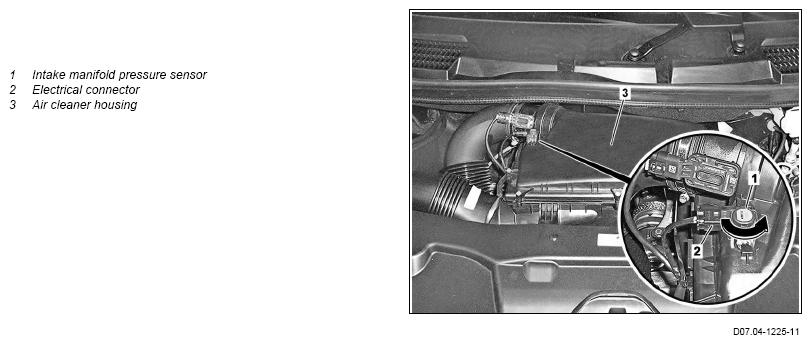

Shown on model 907 with engine 651
| Remove/install | ||
| 1 | Disconnect electrical connection (2) at intake manifold pressure sensor (1) | |
| 2 | Twist intake manifold pressure sensor (1) 90°, as shown, in direction of arrow | |
| 3 | Remove intake manifold pressure sensor (1) from air filter housing (3) | Depending on findings ↓ Replace damaged O-ring. |
| 4 | Install in the reverse order |
