Risk of explosion
caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. |
No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A |
 |
Risk of injury
. Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
| |
Notes about Common-Rail components |
|
AH07.16-P-0002-01TX |
  |
Remove/install |
|
|
| 1 |
Remove the oil separator. |
|
AR01.20-D-9750TSV |
 |
Risk of injury
caused by scraping or cutting body parts on sharp vehicle parts |
Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels. |
AS00.00-Z-0017-01A |
| 2 |

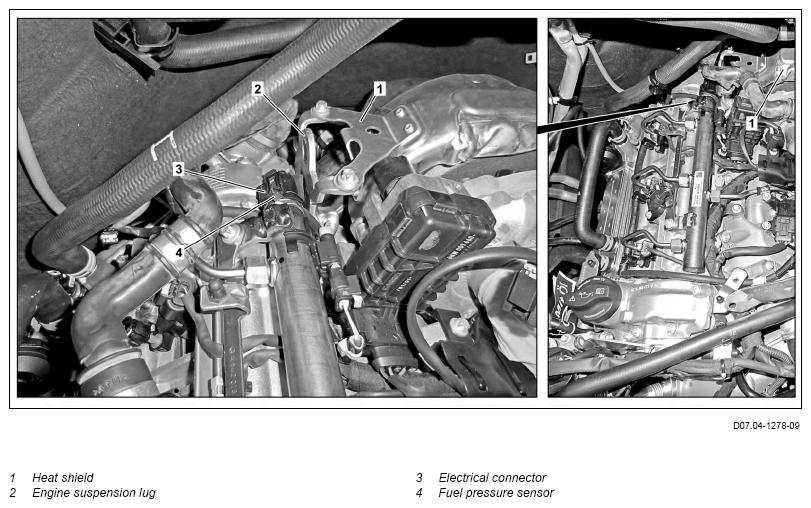

Remove heat shield (1). |
Bolt, heat shield to bracket |
*BA09.40-N-1009-02TSV |
| |
|
Bolt, heat shield to exhaust collector pipe |
*BA09.40-N-1010-02TSV |
| 3 |
Remove the engine suspension lug (2). |
Screw/bolt, engine suspension lug to cylinder head |
*BA01.20-N-1009-01O |
| 4 |
Disconnect electrical connector (3). |
|
|
| 5 |
Remove fuel pressure sensor (4).
Note on calculation of tightening torque when using insertion or socket tools with various effective lengths |
|
AH00.00-P-0015-01CW |
| |
|
Seal connection.
Replace sealing ring. |
|
| |
|
Fuel pressure sensor to rail |
*BA07.16-N-1011-03TSV |
| |
|
Box wrench bit SW 27_mm |
Fig 1 |
| |
|
Record plug |
Fig 2 |
| 6 |
Install in the reverse order |
|
|
| 7 |
Initialize the fuel pressure sensor (4) with the diagnostic system. |
If the fuel pressure sensor (4) has been replaced. |
|
 |
|
|
AD00.00-D-2000-06TS |
 |
Check |
|
|
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| |
Risk of explosion
caused by fuel igniting. Risk of injury
to skin and eyes caused by fuel spraying out at high pressure |
Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A |
| 8 |
Check for leaktightness when engine is running. |
Visual inspection only. |
|
