Remove/Install Fuel Pump Control Unit - Ar47.20-D-5717TSR

Model 907

G13787708

Shown with code JB6 (Parking Package with 360° camera)

G13787709
G13787710
WARNING Risk of injury  during testing and repair operations related to pyrotechnical components Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. AS91.00-Z-0008-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on carrying out repair work in the vehicle interior   AH68.00-N-0001-01S
REMOVINGINSTALLING Remove/install
1 Connect vehicle diagnosis system and start commissioning fuel system control unit (10). When replacing fuel system control unit (10).
REFER TO SELF-DIAGNOSTIC SYSTEMS   INSTALLATION IMPORTANT Transfer stored data to new fuel system control unit (10). AD00.00-D-2000-06TS
2 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3 Detach ground line of on-board electrical system battery.   AR54.10-D-0029TS
4.1 Remove driver seat. Model 907
except code SR8 (Swivel base for driver' seat)
AR91.10-D-1000TS
4.2 Remove turn plate with installed driver's seat. Model 907
with code SR8 (Swivel base for driver' seat)
IMPORTANT Do not separate driver's seat from turn plate.
AR91.10-D-1456TS
5 Remove cover beneath driver's seat.

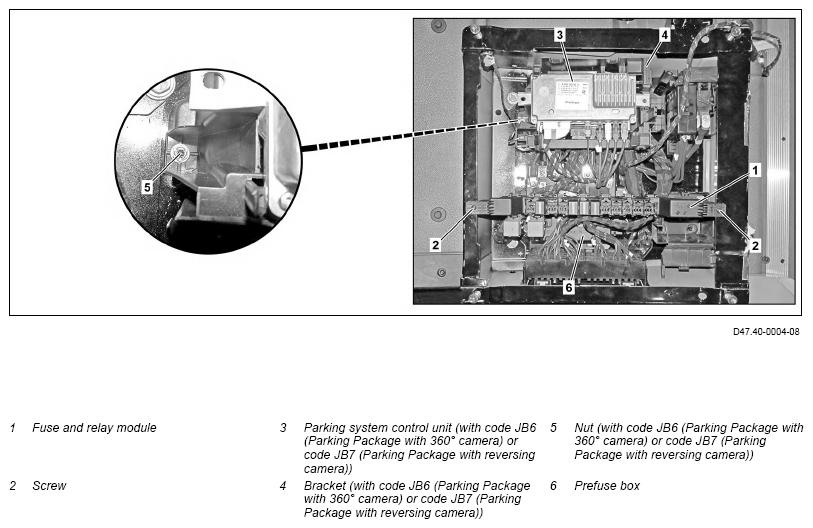

6 Remove fuse and relay module (1) and lay out of working area. IMPORTANT To do this, remove screws (2).
7 Remove parking system control unit (3) with bracket (4) and lay out of working area. Model 907
with code JB6 (Parking package with 360- degree camera)
Model 907
with code JB7 (Parking Package with reversing camera)

  Notes on self-locking nuts and bolts IMPORTANT To do this, unscrew nuts (5). AH00.00-N-0001-01A

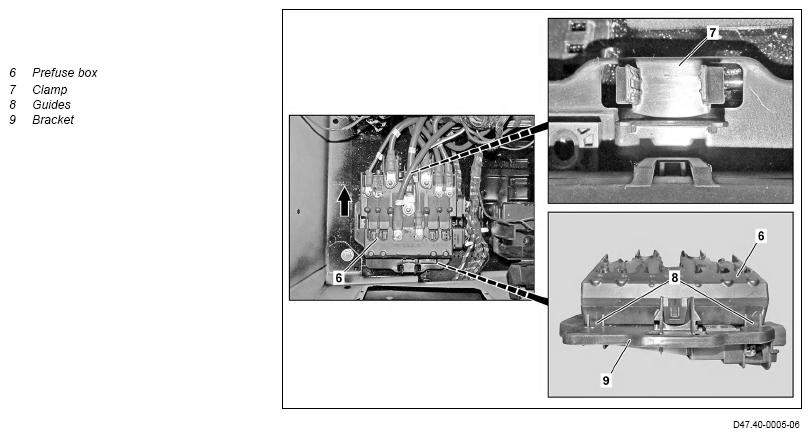

8 Press clamps (7) together and raise prefuse box (6).
9 Remove prefuse box (6) from bracket (9) and lay out of working area. IMPORTANT To do this, raise prefuse box (6) and unhook guides (8) from bracket (9) in direction of arrow.

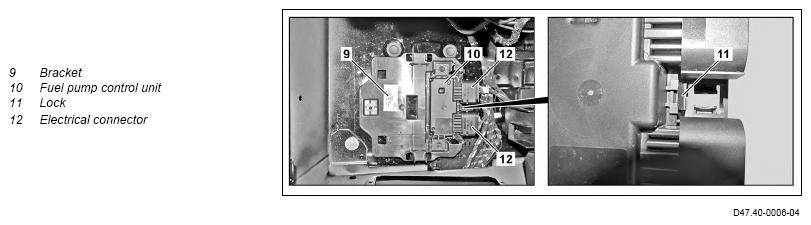

10 Remove fuel system control unit (10) from bracket (9). IMPORTANT To do this, open lock (11).
11 Remove fuel system control unit (10). IMPORTANT To do this, separate electrical connectors (12).
12 Install in the reverse order
INSPECT Check
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off b} itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
13 Perform engine test run.
