Remove/Install Fuel Tank - Ar47.10-D-4100TSC
Model 907 with engine 274
MODIFICATION NOTES
| 14.12.2020 | GB document reference added. | AR47.25-D-4100-01TS | |
| 14.12.2020 | GB document reference added. | Operation step 11 |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Open and close fuel filler cap. | ||
| 2 | Empty the fuel tank (1). | AR47.10-D-4001TS | |
| 3 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||

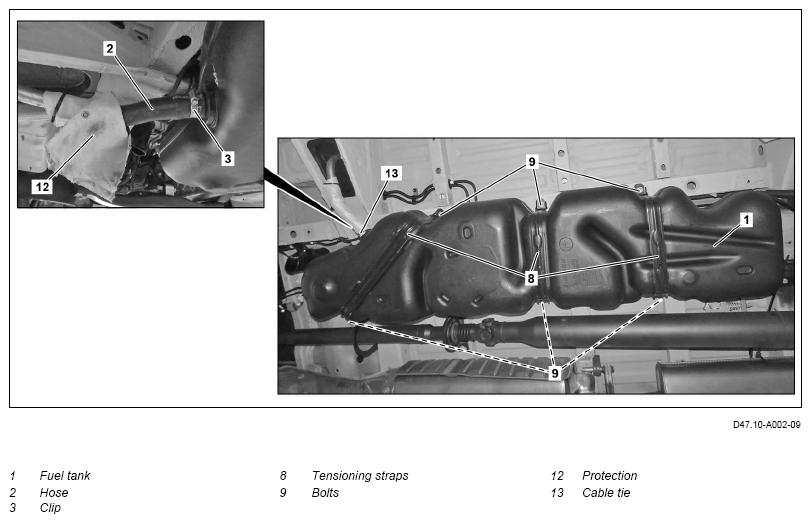

| 4 | Remove cable tie (13) and slide protect (12) of hose (2) to one side. | ||
| 5 | Release clamp (3) and remove hose (2) from fuel tank (1). | Catch fuel running out with suitable vessel. Damage will otherwise occur. Collecting pan |
|
| Check | |||
| 6 | Check hose (2) and clamp (3). | If damage is present, ↓ Replace affected component part. |
|
| 7 | Release and disconnect electrical connector (4). | ||
| 8 | Support fuel tank (1) and secure with suitable tools against falling down. | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 9 | Remove screws (9) and remove tensioning straps (8). | *BA47.10-N-1002-01TS | |
| *BA47.10-N-1003-01TS | |||
| *BA47.10-N-1004-01TS | |||

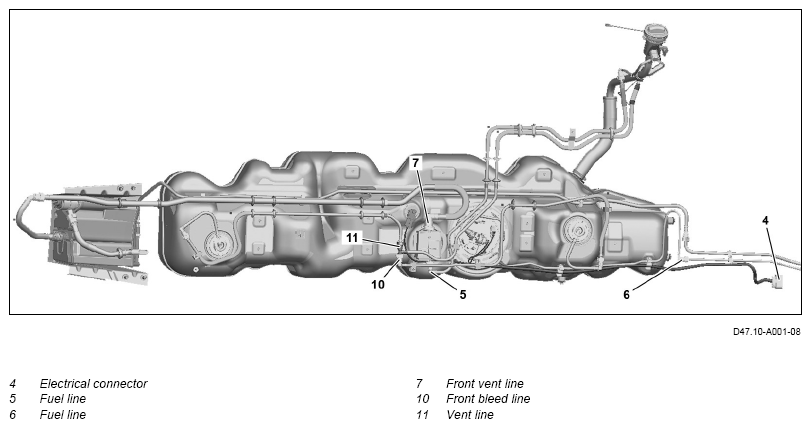

| 10 | Lower fuel tank (1) until lines (5,7,10,11) can be accessed. | ||
| 11 | Release, disconnect fuel lines (5, 6) and seal with suitable stop plugs. | AR47.25-D-4100-01TS | |
| Clip: Illustration of various states for unlocking and locking the connector coupling with double lock on fuel line Catch fuel running out with suitable vessel. Damage will otherwise occur. Collecting pan |
GB47.25-D-0000-00A | ||
| Fig 1 | |||
| 12 | Release, disconnect front bleed line (10) and bleed line (11) and seal with suitable stop plugs. | AR47.25-D-4100-01TS | |
| Fig 1 | |||
| 13 | Release, disconnect front vent line (7) and seal with suitable stop plugs. | AR47.25-D-4100-01TS | |
| Fig 1 | |||
| 14 | Remove fuel tank (1). | ||
| 15 | Remove the fuel pump and fill level sensor. | If the fuel pump and fill level sensor or fuel tank (1) are replaced. | AR47.20-D-7000TSC |
| 16 | Install in the reverse order | ||
| Check | |||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Perform engine test run; in this connection, check fuel system in area of fuel tank (1) for leaks. | Remove escaping fuel. Damage will otherwise occur. |
|
| 18 | Lower vehicle. |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA47.10-N-1002-01TS | Bolt, front fuel tank tensioning strap to frame | Nm | 56 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA47.10-N-1003-01TS | Bolt, fuel tank tensioning strap to frame center | Nm | 56 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA47.10-N-1004-01TS | Bolt, rear fuel tank tensioning strap to frame | Nm | 56 |
