Check The Generator's Charging Current - Ar15.40-S-5011E

Type 907 with Motor 274, 642, 651

	Risk of accident  by starting up automatically while the engine is running. Risk of injury  from bruises and burns when intervening during the starting process or while the engine is running	Secure the vehicle against starting by itself	AS00.00-Z-0005-01A
	Check
1	Check and ensure the preconditions for the generator test.		AR15.40-S-5009E
2	Check and ensure the preconditions for the generator test.		AR15.40-S-5010E

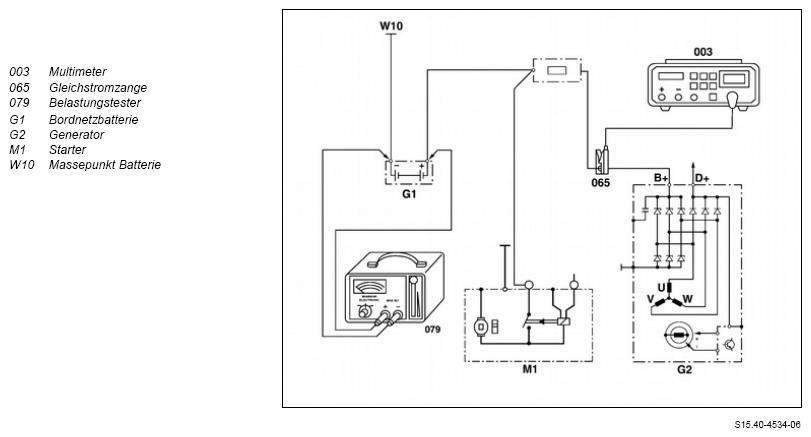

3	Attach the multimeter (003) with DC current clamp (065) to the electrical line of the generator (G2) according to the connection diagram.
4	Attach the load tester (079) to the on-board power supply battery (G1) according to the connection diagram.
	000 588 03 19 00 Stress tester		WS15.00-P-0027B
5	Start the motor.
6	Check the charging current of the generator (G2).	Check the charging current with increased engine speed, whereby the on-board power supply battery (G1) is loaded with the load tester (079). Change the load resistance until the maximum charging current, depending on the version of the generator (G2), is reached. The charging voltage must not drop below 12.7 V. If the maximum charging current is not reached, ↓ Check generator diodes (G2).	AR15.40-S-9301-02E
7	Stop engine.
8	Remove the multimeter (003) with the DC current clamp (065).
9	Remove the stress tester (079).
