Remove/Install Alternator - Ar15.40-D-5032TSC
Engine 274 in model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Clamp off ground line of on-board electrical system battery (G1). | AR54.10-D-0029TS | |
| 2 | Remove the throttle valve actuator. | AR07.70-D-0005TSC | |
| 3 | Remove poly-V-belt from alternator (G2). | AR13.22-D-1202TSC | |
| 4 | Remove refrigerant compressor and swivel out of working area with connected refrigerant lines. | Engine 274 in model 907 with code HH4 (THERMOTRONIC automatic climate control) Engine 274 in model 907 with code HH9 (Air conditioner, automatic heater control) |
AR83.55-D-5310TSC |

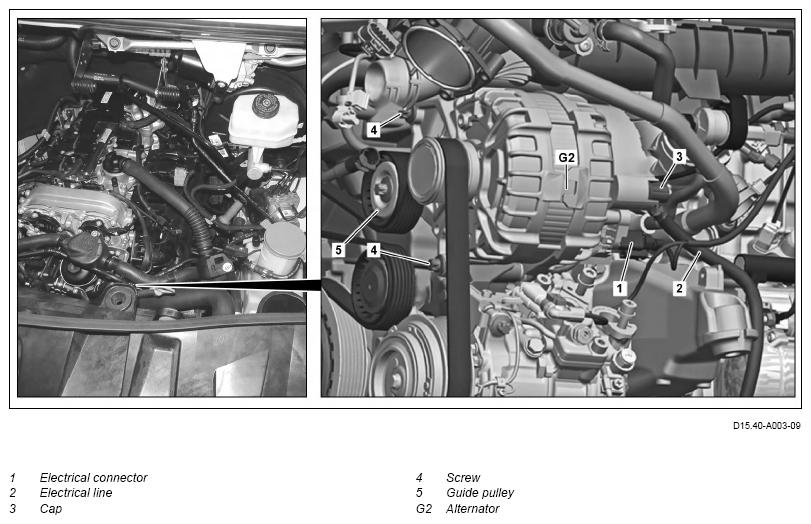

| 5 | Release electrical connector (1) and disconnect. | ||
| 6 | Remove cover (3). | ||
| 7 | Unscrew nut and remove electric line (2) from alternator (G2). | *BA15.40-N-1002-01X | |
| 8 | Unscrew screw/bolts (4). | AR15.40-D-5032-03TSC | |
It is paramount you keep to the tightening sequence of the screws (4). Damage may occur otherwise. |
*BA15.40-N-1001-01X | ||
| 9 | Remove the alternator (G2). | ||
| 10 | Transfer guide pulley (5). | When replacing alternator (G2). |
*BA13.25-N-1002-01EG |
| 11 | Install in the reverse order. |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA13.25-N-1002-01EG | Bolt, guide pulley to alternator | Nm | 20 |
| Number | Designation | Engine 274 in model 907 | ||
|---|---|---|---|---|
| BA15.40-N-1001-01X | Bolt, alternator to timing case | Stage 1 | Nm | 8 |
| Stage 2 | Nm | 20 | ||
| Number | Designation | Engine 274 in model 907 | ||
|---|---|---|---|---|
| BA15.40-N-1002-01X | Nut, line to alternator | M8 | Nm | 15 |
