Remove/install |
|
|
| 1 |
Disconnect ground line of on-board electrical system battery |
|
AR54.10-D-0029TS |
| 2 |

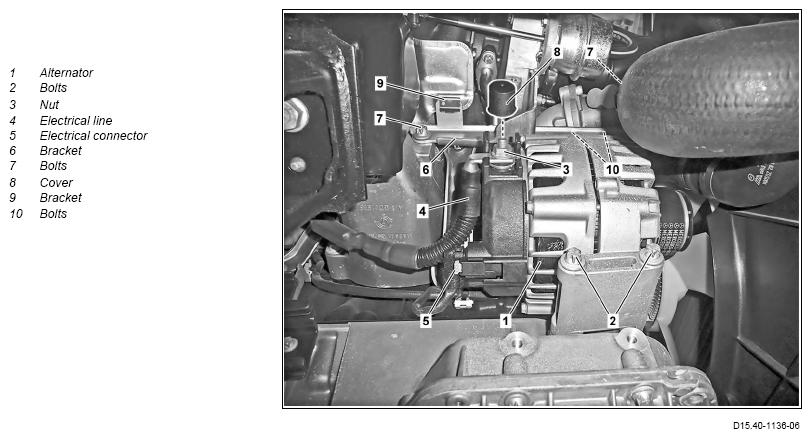

Remove poly-V-belt from alternator (1) |
|
AR13.22-D-1202TSR |
| 3 |
Remove bolts (7) |
M6 |
*BA00.10-N-1002-01A |
| |
|
M8 |
*BA00.10-N-1003-01A |
| 4 |
Remove screw/bolts (10) |
Bolt, alternator to major assembly carrier |
*BA15.40-N-1002-01TS |
| 5 |
Remove bracket (6) |
To do this, remove the bracket (6) from the bracket (9). |
|
| 6 |
Remove cover (8) |
|
|
| 7 |
Remove nut (3) |
Nut, electrical line to alternator |
*BA15.40-N-1001-01TS |
| 8 |
Remove electric line (4) from alternator (1) |
Position electric line (4) outside the working area. |
|
| 9 |
Disconnect electrical connection (5) |
Position electrical connector (5) outside of the working area. |
|
| 10 |
Remove alternator (1) |
To do this, remove screws (2).
Bolt, alternator to major assembly carrier |
*BA15.40-N-1002-01TS |
| 11 |
Install in the reverse order |
|
|
