Remove/Install Alternator - Ar15.40-D-5032TSV
Engine 642 in model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 2 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 3 | Remove lower engine compartment lining. | If installed. | AR61.20-D-1105TS |
| 4 | Release tension on poly-V-belt and remove from alternator belt pulley (1). | AR13.22-D-3902-05TSV | |
| Pin for locking poly-V belt tensioning device | WF58.50-S-1325-02S | ||
| Check | |||
| 5 | Check poly-V-belt for wear and damage. | Depending on the findings, ↓ replace poly-V belt. Remove/install poly-V belt |
AR13.22-D-1202TSV |

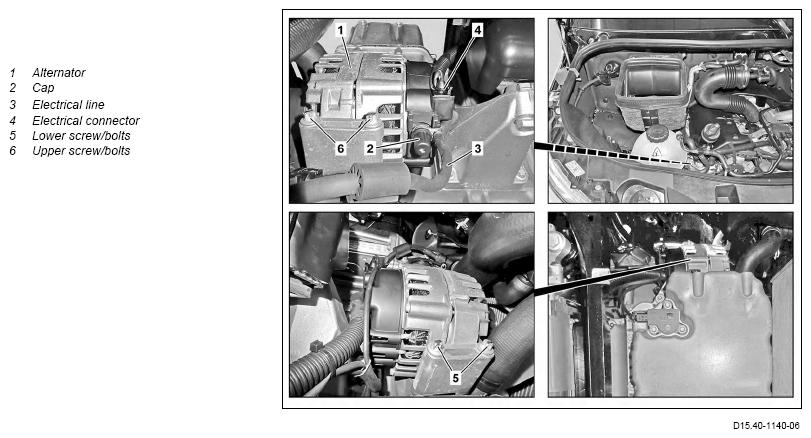

| 6 | Remove cover (2). | ||
| 7 | Remove electric line (3) from alternator (1). | *BA15.40-N-1001-01TSV | |
| 8 | Disconnect electrical connection (4). | ||
| 9 | Remove lower screws (5). | *BA15.40-N-1002-01TSV | |
| 10 | Remove upper screws (6) and remove alternator (1). | *BA15.40-N-1002-01TSV | |
| Check | |||
| 11 | Check contact surface and freewheel of belt pulley for damage. | Depending on the findings, ↓ Replace alternator belt pulley (1). Remove/install alternator belt pulley |
AR15.40-D-5710TSV |
| 12 | Install in the reverse order |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA15.40-N-1001-01TSV | Nut, electrical line to alternator | Nm | 16 |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA15.40-N-1002-01TSV | Screw/bolt, alternator to crankcase | Nm | 20 |
