Remove/Install Coolant Temperature Sensor - Ar15.60-D-2712TS

Engine 651 in model 907

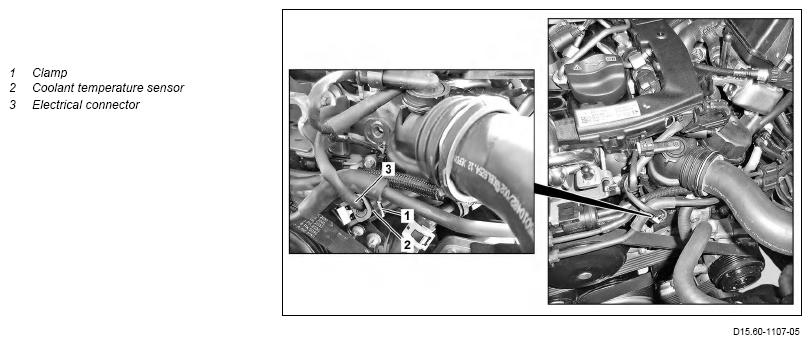

G13789913
REMOVINGINSTALLING Remove/install
1 Drain off coolant   AR20.00-D-1142TSR
2 Remove engine cover   AR01.10-D-2405TSR
3 Disconnect electrical connector (3)
4 Remove clip (1)
5 Remove coolant temperature sensor (2) IMPORTANTRemoval:  Collect coolant which flows out.
INSTALLATION IMPORTANT : Replace sealing ring.

6 Install in the reverse order
