Remove/Install Glow Plugs - Ar15.20-D-4111TSR

Engine 651 in model 907

MODIFICATION NOTES

07.06.2019

Special tool pliers 611 589 00 37 00, added

Operation step 8

	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes for ceramic glow plugs		AH15.20-P-0001-01A
	Remove/install

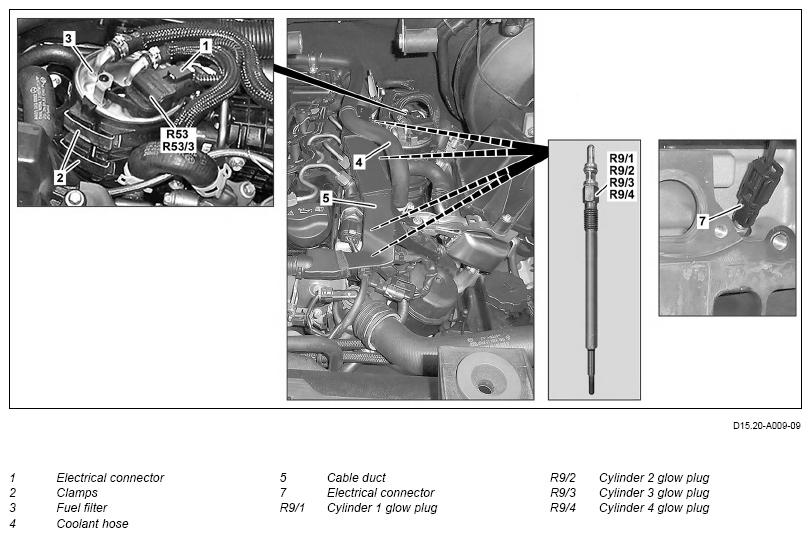

1	Bring coolant temperature to approx. 80 °C.
2	Switch off engine.
3	Remove engine cover.		AR01.10-D-2405TSR
4	Separate electrical connection (1).
5	Open clips (2) and place fuel filter (3) with connected fuel lines to one side.
6	Unclip coolant hose (4) from the cable duct (5).
7	Unfasten cable duct (5).		AR15.18-D-0004-01TSR
		M6	*BA00.10-N-1002-01A
8	Disconnect electrical connectors (7) of glow plugs (R9/1, R9/2, R9/3, R9/4).	Pliers	Fig 1
	Clean
9	Clean environment of glow plugs (R9/1, R9/2, R9/3, R9/4).	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
10	Mark glow plugs (R9/1, R9/2, R9/3, R9/4) relative to corresponding cylinders.	Where glow plugs (R9/1, R9/2, R9/3, R9/4) are reused.
11	Remove glow plugs (R9/1, R9/2, R9/3, R9/4).	Glow plug to cylinder head	*BA15.20-N-1001-02TS
		Wrench socket	Fig 3
		If glow plugs (R9/1, R9/2, R9/3, R9/4) are reused, ↓ when installing glow plugs (R9/1, R9/2, R9/3, R9/4), install according to the applied marking. If glow plugs (R9/1, R9/2, R9/3, R9/4) break off ↓ Drill out corresponding glow plugs (R9/1, R9/2, R9/3, R9/4).	AR15.20-D-4112TSF
	Clean
12	Clean glow plug wells.	Cylinder brush	Fig 2
13	Install in the reverse order.
14	Connect diagnostic device, read out fault memory and perform initialization of glow plugs (R9/1, R9/2, R9/3, R9/4).	After replacement of glow plugs (R9/1, R9/2, R9/3, R9/4).	AD00.00-D-2000-06TS
	Check
15	Perform engine test run and check engine in area of glow plugs (R9/1, R9/2, R9/3, R9/4) for leaks.	Visual inspection only.

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			8.8	10.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	9	13
BA00.10-N-1002-01A	M6	Phosphated	Nm	9	12

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			12.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	16
BA00.10-N-1002-01A	M6	Phosphated	Nm	14

PREGLOW SYSTEM

Number	Designation			Engine 651 in model 907
BA15.20-N-1001-02TS	Glow plug to cylinder head	M8	Nm	11
BA15.20-N-1001-02TS	Glow plug to cylinder head	M10	Nm	18

Fig 1: Pliers (611 589 00 37 00)

Fig 2: Cylinder Brush (000 589 10 68 00)

Fig 3: Wrench Socket (001 589 80 09 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
